Windows 10 IoT Enterprise tablet ST9-W

Windows 10Windows 10 Pro8"

Product Overview

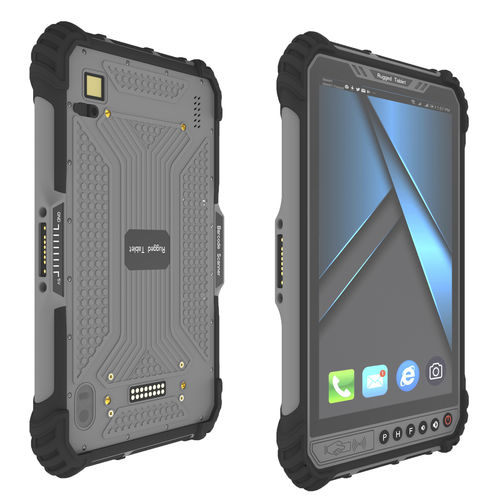

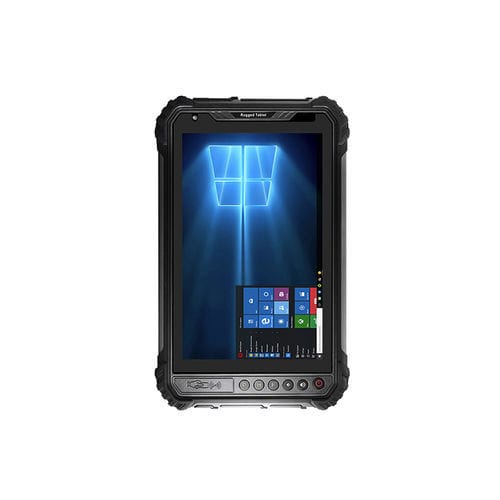

The ST9-W is an 8-inch rugged Windows tablet designed for industrial and enterprise field use. It runs Windows 10 Pro (Windows 10 Home/IoT optional) and is powered by the Intel Cherry Trail Z8350 quad-core processor (Turbo up to 1.92GHz). The device offers 4GB RAM, 64GB storage, a 1200×1920 8" IPS display (400 nits max), front and rear cameras, 7800mAh battery (~7.5 hours video playback), 4G LTE, WiFi 802.11a/b/g/n/ac and Bluetooth 4.2. With IP65 protection, MIL-STD-810G certification, HDMI output and multiple USB interfaces, the ST9-W suits Windows-based data collection, field service and industrial control tasks.

Key Features

• Windows 10 Pro (options: Home / IoT) with Intel Cherry Trail Z8350 (1.44GHz, Turbo 1.92GHz)
• Intel HD Graphics 400 and 8" IPS display, 1200×1920, 400 nits (max)
• 4GB RAM / 64GB eMMC storage
• 7800mAh battery — approx. 7.5 hours video playback (50% volume, 60% brightness)
• 2MP front and 5MP rear cameras; stylus and wet-hand 10-point touch support
• 4G LTE, Intel WiFi/BT module (802.11a/b/g/n/ac, Bluetooth 4.2)
• Rugged: IP65 (dust/water), 1.2 m drop resistance, MIL-STD-810G
• Rich I/O: HDMI ×1, USB 3.0 ×2, USB 2.0 ×1, RS232 (mini-USB), earphone, DC-in, SIM slot, pogo-pin expansion
• Optional modules: UHF RFID, 1D/2D barcode scanners, fingerprint sensor, high-precision GPS

Technical Specifications
OS: Windows 10 Pro (Home/IoT optional)
CPU: Intel Cherry Trail Z8350 (Quad-core 1.44GHz; Turbo up to 1.92GHz)
GPU: Intel HD Graphics 400
RAM/ROM: 4GB / 64GB
Display: 8" IPS, 1200×1920, 400 nits (max)
Touch: 10-point touch, stylus support, wet-hand touch support
Cameras: Front 2MP; Rear 5MP
Battery: 7800mAh; 3.8V; charging ~3.5 h; usage ~7.5 h (local 1080P playback)
WWAN: 4G LTE module (multi-band support)
GPS: BDS/GPS/GLONASS (optional high-precision GNSS)
WiFi: 802.11a/b/g/n/ac (2.4/5 GHz); Bluetooth 4.2
NFC: 13.56 MHz, ISO14443 Type A
Sensors: Ambient light, accelerometer, G-sensor
Size: 236 × 144 × 17.4 mm
Weight: ~670 g
Interfaces: HDMI ×1; SIM ×1; RS232 ×1 (mini‑USB); Earphone ×1; DC-in ×1; USB-A: USB3.0×2 + USB2.0×1; Bottom pogo-pin: USB2.0/charging/RS232; Back pogo-pin: USB2.0/RS232
Ruggedization & Certs: IP65, 1.2m drop, MIL-STD-810G, CE, FCC, 3C
Operating Temp: -20°C to 55°C; Storage Temp: -40°C to 60°C

Application Scenarios

• Windows-based industrial control and HMI
• Field data collection and processing
• Precision GPS navigation and asset tracking
• Enterprise field service and inspections

Model / Technical specifications

• Model: ST9-W
• Platform: Windows 10 Pro (Home/IoT options)
• Processor: Intel Cherry Trail Z8350 (up to 1.92GHz)
• Display: 8" IPS 1200×1920, 400 nits
• Memory/Storage: 4GB / 64GB
• Battery: 7800mAh (~7.5h playback)
• Rugged: IP65, 1.2m drop, MIL-STD-810G
• Wireless: 4G LTE, WiFi 802.11a/b/g/n/ac, Bluetooth 4.2
• Expansion: HDMI, USB 3.0×2, USB 2.0×1, RS232, pogo-pin modules, optional RFID/barcode/fingerprint/GPS
