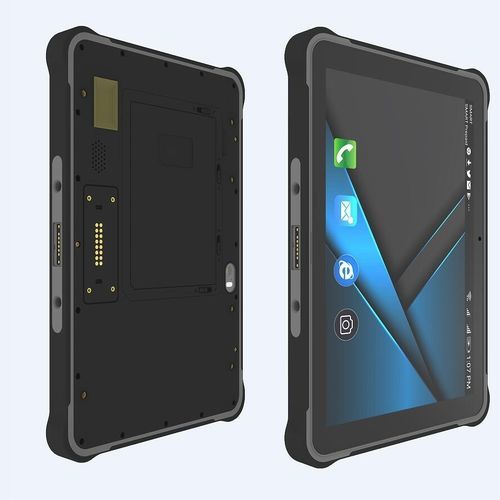

Android 13 tablet ST9-Q3

Android8"octa-core

Product Overview
The ST9-Q3 is an 8-inch rugged tablet powered by the Qualcomm 5G SOC QCM4490 octa-core processor and running Android 13. Designed for demanding field and industrial use, it combines multi-band 5G, WiFi 6 and Bluetooth 5.2 connectivity with a high-brightness IPS display, long-life 10000mAh battery and multiple expansion options (pogopin, RS232, USB). Optional UHF RFID, 1D/2D barcode and fingerprint modules extend deployment flexibility for IoT and industrial workflows.

Key Features

• Android 13 on Qualcomm 5G SOC QCM4490 (Octa Core: 2×Kryo Gold @2.4GHz + 6×Kryo Silver @1.95GHz)
• Adreno 613 GPU; 8-inch IPS display 1200×1920, 400 nits
• Configurable memory: standard 8GB/128GB; options 4GB/64GB or 8GB/256GB
• Large-capacity 10000mAh battery (3.8V) for extended field operation
• Front 8MP camera and rear 16MP camera with flash; stylus and wet-hand 10-point touch support
• 5G multi-band (FDD/TDD), WiFi 6 (802.11ax), Bluetooth 5.2
• IP65 dust/water protection and 1.2 m drop resistance (MIL-STD-810G)
• Rich I/O: Type-C (OTG), USB 2.0×2, RS232, SIM/TF slots, earphone, DC input; pogopin expansion supports USB 2.0, charging and RS232
• Optional modules: UHF RFID (M-500 / M-301), 1D/2D barcode (NLS-N1 / M1), fingerprint readers (ZAZ-0A0 / 1020A)

Application Scenarios

• 5G IoT deployment and edge computing
• Smart industrial terminals and asset management
• High-resolution image inspection and field diagnostics
• High-speed mobile field operations (logistics, utilities, inspections)

Technical Specifications

• OS: Android 13
• CPU: Qualcomm 5G SOC QCM4490 (Octa Core; Kryo Gold×2 @2.4GHz, Kryo Silver×6 @1.95GHz)
• GPU: Adreno GPU 613
• RAM / ROM: 8GB / 128GB (options: 4GB/64GB, 8GB/256GB)
• Display: 8 inch IPS, 1200×1920; 400 nits
• Touch: 10-point touch; stylus support; wet-hand touch support
• Camera: Front 8MP; Rear 16MP with flash
• Battery: 10000mAh; 3.8V
• Cellular bands: 5G-FDD: N1/N3/N5/N7/N8/N20/N28; 5G-TDD: N38/N40/N41/N77/N78/N79; LTE-FDD: B1/B3/B5/B7/B8/B20/B26/B28; LTE-TDD: B38/B40/B41; WCDMA: B1/B5/B8
• GPS: BDS, GPS, GLONASS, Galileo
• WiFi: 802.11 a/b/g/n/ac/ax (2.4G / 5G); supports WiFi 6; Wireless AP
• Bluetooth: 5.2
• NFC: 13.56 MHz; 1–3 cm; supports ISO/IEC 14443A/B, ISO/IEC 15693
• Sensors: Ambient light, Magnetic, Pressure, G-sensor, Proximity, Accelerometer, Gyroscope, Vibration motor
• Dimensions: 236 × 144 × 17.4 mm
• Weight: 630 ±20 g
• Interfaces: Type-C ×1 (OTG), SIM ×1, TF ×1, Earphone ×1, DC ×1 (3.5×15 mm), USB 2.0 ×2, RS232 ×1 (mini-USB); Bottom pogopin: USB 2.0, Charging, RS232; Rear pogopin: USB 2.0, RS232
• 1D/2D Barcode: Optional NLS-N1 / M1
• UHF RFID (optional): M-500 (US 902–928 MHz / EU 865–868 MHz; read range ~3–5 m), M-301 (US 902–928 MHz / EU 865–868 MHz; read range ~5–8 m)
• Fingerprint: Optional ZAZ-0A0 / 1020A
• Ingress & drop: IP65; 1.2 m drop resistance
• Certifications: MIL-STD-810G, CE, FCC, 3C
• Operating temperature: -20°C to 55°C; Storage: -40°C to 60°C
