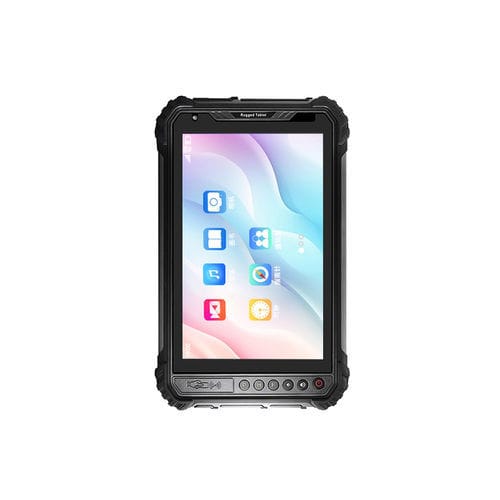

Android tablet ST9-A8

8"ARM® Cortex®-A55 Quad-coreARM Cortex-A78

Product Overview
The ST9-A8 is an 8-inch rugged tablet powered by the MT6877 octa-core processor (2×Cortex-A78 + 6×Cortex-A55) running Android 15.0. Configurations include 8GB/256GB (16GB/512GB optional). The device features an 8" IPS display (1200×1920, 400 nits standard; 1000 nits optional), 8MP front and 16MP rear cameras with flash, a 10000mAh battery, and 5G connectivity. WiFi 6, Bluetooth 5.2, IP65 dust/water resistance, 1.2 m drop protection and modular expansion options (UHF RFID, 1D/2D barcode, fingerprint, etc.) make it suitable for government, logistics, industrial and high-bandwidth field applications.

Key Features

• Android 15.0 with MT6877 octa-core CPU (2×[email protected] + 6×[email protected])
• 8" 1200×1920 IPS display, 400 nits (1000 nits optional); stylus and wet-hand touch support
• Flexible storage: 8GB/256GB (16GB/512GB optional)
• 8MP front and 16MP rear cameras with flash; 10000mAh battery
• 5G multi-band, WiFi 6 (802.11ax) and Bluetooth 5.2
• IP65 dust/water resistance and 1.2 m drop protection (MIL-STD-810G)
• Optional modules: UHF RFID (M-500/M-301), 1D/2D barcode scanners, fingerprint sensors
• Multiple interfaces: USB Type-C, USB 2.0×2, RS232, pogo-pin expansion

Technical Specifications (ST9-A8)
OS: Android 15.0
CPU: MT6877 (Octa Core) — 2×Arm [email protected], 6×Arm [email protected]
RAM/ROM: 8GB/256GB (16GB/512GB Optional)
Display: 8" IPS, 1200×1920 (400 nits); 1000 nits optional (800×1280 for some SKUs)
Touch: 10-point, stylus support, wet-hand touch support
Cameras: Front 8MP; Rear 16MP with flash
Battery: 10000mAh, 3.8V
WWAN: 5G: N1/N5/N8/N28AB/N78/N41; FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28; TDD_LTE: B34/B38/B39/B40/B41/B66; WCDMA: 850/900/1900/2100; CDMA2000: BC0; TD-SCDMA: B34/B39; GSM: 850/900/1800/1900
GPS: BDS, GPS, GLONASS
WiFi: 802.11a/b/g/n/ac/ax (2.4G/5G), supports WiFi 6 and Mobile AP
Bluetooth: 5.2, backward compatible
NFC: 13.56 MHz; ISO/IEC 14443A/B; ISO/IEC 15693; range 1–3 cm
FM: Supported
Sensors: Light, Geomagnetic, Barometer, G-Sensor, Accelerometer, Gyroscope, Proximity; vibration motor
Dimensions: 236×144×17.4 mm
Weight: 630±20 g
Interfaces: Type-C ×1 (OTG), SIM slot ×1, TF slot ×1, Earphone ×1, DC ×1 (3.5*15mm), USB 2.0 ×2, RS232 ×1 (mini-USB); Bottom pogo-pin: USB 2.0/Charging/RS232; Back pogo-pin: USB 2.0/RS232
1D/2D Barcode: Optional NLS-N1 / M1 / SE2707
UHF RFID: Optional M-500 (US 902–928 MHz / EU 865–868 MHz) and M-301 variants
Fingerprint: Optional ZAZ-0A0 / 1020A
Ingress Protection: IP65; drop resistance 1.2 m
Certifications: MIL-STD-810G, CE, FCC, 3C
Operating Temp: -20°C to 55°C; Storage: -40°C to 60°C

Application Scenarios

• 5G IoT deployments
• Smart industrial operations
• High-definition image capture in the field
• High-bandwidth field work and mobile data collection

Characteristics / Technical specifications

• Processor: MT6877 octa-core (2×A78 + 6×A55)
• OS: Android 15.0
• Memory/Storage: 8GB/256GB (upgradeable to 16GB/512GB)
• Display: 8" IPS (1200×1920), 400 nits (1000 nits option); stylus & wet-touch support
• Battery: 10000mAh
• Connectivity: 5G, WiFi 6, Bluetooth 5.2, GPS/BDS/GLONASS, NFC
• Durability: IP65, 1.2 m drop (MIL-STD-810G)
• Expansion: Optional UHF RFID, barcode scanners, fingerprint modules; multiple I/O ports
