Windows 10 Pro tablet ST9-J

Windows 11 Pro8"Intel® Celeron® N5100

Product Overview

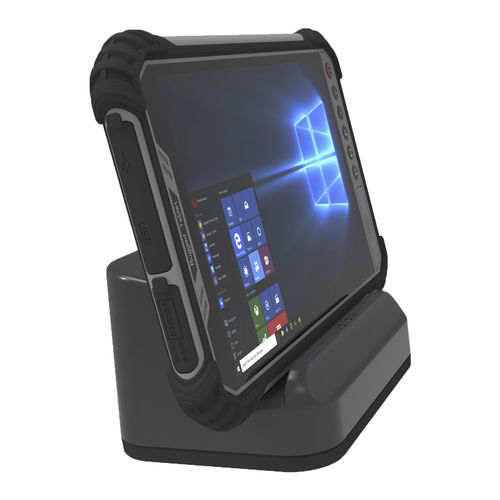

The ST9-J is an 8-inch industrial rugged tablet powered by Intel Celeron N5100 (quad-core, Turbo up to 2.80GHz). It supports Windows 10 Pro, optional Windows 10 Home or Windows 11 Pro, includes TPM2.0, and provides flexible RAM/storage and modular expansion for industrial, logistics and field applications. The device features an 8-inch high-resolution IPS display (optional high-brightness), front and rear cameras, a 5000mAh battery, 4G LTE, dual-band Wi‑Fi, IP65 protection and 1.2 m drop resistance.

Key Features

• Windows 10 Pro (Windows 10 Home / Windows 11 Pro optional) with Intel Celeron N5100 (1.10GHz, Turbo 2.80GHz)
• TPM2.0 security; UHD Graphics (24 EUs)
• 8-inch 1200×1920 IPS display (400 nits standard; 1000 nits optional); stylus and wet-hand touch support
• Configurable memory/storage: 8GB/256GB standard (options: 4GB/128GB/512GB)
• 5000mAh, 7.7V battery (≈3h charge; ≈7h typical video playback)
• 4G LTE (SLM770A / EC25-AUX for North America), dual-band Wi‑Fi (Realtek 8822CE), Bluetooth 4.2
• IP65 dust/waterproof; 1.2 m drop resistance (MIL-STD-810G)
• Multiple I/O: HDMI, USB 3.0 ×3, RS232 (mini-USB), audio, DC jack, SIM slot; pogopin expansion
• Optional modules: UHF RFID, 1D/2D barcode scanners, fingerprint reader, high-precision GPS

Technical specifications
OS: Windows 10 Pro (Win10 Home / Win11 Pro optional)
CPU: Intel Celeron N5100 (Quad Core, 1.10GHz; Turbo up to 2.80GHz)
GPU: UHD Graphics (24 EUs)
TPM: TPM2.0
RAM: 8GB (4GB optional)
ROM: 256GB (128GB / 512GB optional)
Display: 8-inch IPS 1200×1920; 400 nits (1000 nits optional)
Touch: 10-point, stylus and wet-hand support
Camera: Front 5MP; Rear 13MP
Battery: 5000mAh, 7.7V; charging ≈3h; usage ≈7h (50% volume, 60% brightness, local 1080P)
WWAN: FDD/TDD LTE bands; Module: SLM770A (EC25-AUX North America)
GPS: BDS/GPS/GLONASS (optional high-precision UM960)
Wi‑Fi/BT: 802.11a/b/g/n/ac (2.4/5GHz) / Realtek 8822CE; Bluetooth 4.2
NFC: 13.56 MHz ISO14443 Type A
Sensors: Ambient light, accelerometer, gravity sensor
Size: 236×144×17.4mm
Weight: 700±50g
I/O ports: HDMI×1; SIM×1; RS232×1 (mini-USB); Earphone×1; DC×1; USB3.0×3; pogopin expansion
Barcode/UHF/Fingerprint: Optional modules available
Protection: IP65; 1.2m drop; Certifications: MIL-STD-810G, CE, FCC, 3C
Temperature: Operation -20°C to 55°C; Storage -40°C to 60°C

Application Scenarios

• Industrial control and Windows-based field software
• Secure enterprise deployments requiring TPM and Windows compatibility
• Logistics and inventory management (barcode/UHF RFID capture)
• Field service and maintenance with modular expansion

Technical data

• Model: ST9-J
• Processor: Intel Celeron N5100 (quad-core, Turbo up to 2.80GHz)
• OS: Windows 10 Pro / Win10 Home (opt.) / Win11 Pro (opt.)
• Memory/Storage: 8GB / 256GB (options 4GB/128GB/512GB)
• Display: 8" IPS 1200×1920 (400nits; 1000nits opt.), 10-point touch
• Cameras: Front 5MP; Rear 13MP
• Battery: 5000mAh 7.7V (≈3h charge, ≈7h usage)
• Connectivity: 4G LTE module, dual-band Wi‑Fi, Bluetooth 4.2
• Interfaces: HDMI, USB3.0×3, RS232, SIM, audio, DC, pogopins
• Optional modules: UHF RFID (M-500/M-301), barcode (NLS-N1/M1/SE2707), fingerprint (ZAZ-0A0/1020A), high-precision GPS
• Protection & Certs: IP65, 1.2m drop, MIL-STD-810G, CE, FCC, 3C
• Dimensions / Weight: 236×144×17.4mm; 700±50g
