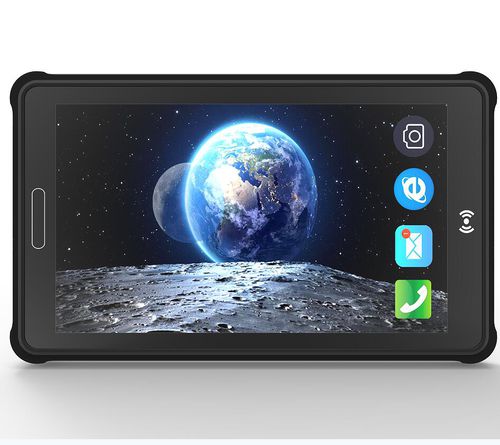

Android 10 tablet ST9-T

8"ARMocta-core

Product Overview
The ST9-T is an industrial 5G tablet designed for field logistics, inspections and public safety operations. It runs Android 10.0 on a Unisoc T7510 octa-core platform and combines an 8-inch high‑resolution IPS display, long battery life and a range of wired/wireless connectivity options in an IP65-rated, drop‑resistant enclosure.

Key Features

• Android 10.0 with Unisoc T7510 (Octa-core: 4×Cortex‑[email protected] + 4×Cortex‑[email protected])
• PowerVR GM9446 GPU; 8-inch IPS 1200×1920 display (370 nits TYP, 390 nits MAX)
• 8GB RAM / 256GB fixed storage; 7800mAh battery (≈16.5 h video playback)
• Front 5MP and rear 13MP cameras with flash; stylus support, wet‑hand touch and 10‑point multi‑touch
• Cellular: 5G (N41/N78/N79), 4G LTE multi‑band, 3G/2G; Wi‑Fi 5 (802.11 a/b/g/n/ac) and Bluetooth 5.0
• Ingress protection IP65 and 1.2 m drop resistance (MIL‑STD‑810G)
• Rich I/O: USB Type‑C (OTG), USB 2.0 ×2, RS232 (mini‑USB), TF card, earphone, DC jack; pogo‑pin expansion (bottom/back) for USB2.0, charging, RS232
• Optional modules: UHF RFID (M‑500 / M‑301), 1D/2D barcode scanners (NLS‑N1 / M1 / SE2707), fingerprint modules (ZAZ‑0A0 / 1020A)

Application Scenarios

• 5G field operations and mobile data collection
• Logistics, warehouse and asset tracking
• Public safety and inspection workflows
• IoT gateway and on‑site analytics

Technical Specifications (ST9-T)
OS: Android 10.0
CPU: Unisoc T7510 (Octa Core; 4×Cortex‑A75 @2.0GHz + 4×Cortex‑A55 @1.8GHz)
GPU: PowerVR GM9446
RAM/ROM: 8GB / 256GB (fixed)
Display: 8 inch IPS, 1200×1920; 370 nits (TYP), 390 nits (MAX)
Touch: 10‑point; stylus support; wet‑hand touch support
Cameras: Front 5MP; Rear 13MP with flash
Battery: 7800mAh; 3.8V; charging ~6H; usage ~16.5H (video playback test conditions apply)
WWAN: 5G: N41/N78/N79; 4G LTE multi‑band; 3G/2G supported
GPS: BDS, GPS, GLONASS
WiFi: 802.11 a/b/g/n/ac (2.4G/5G), Mobile AP
Bluetooth: 5.0
NFC: 13.56 MHz, ISO14443 Type A
Sensors: Light, Proximity, Barometer, G‑sensor, Accelerometer, Gyroscope, Vibration motor
Size: 236 × 144 × 17.4 mm
Weight: 630 ± 20 g
Interfaces: Type‑C ×1 (OTG), SIM slot ×1, TF ×1, Earphone ×1, DC jack, USB2.0 ×2, RS232 ×1 (mini‑USB); bottom pogo‑pin: USB2.0/Charging/RS232; back pogo‑pin: USB2.0/RS232
Optional: 1D/2D barcode scanners, UHF RFID (M‑500 / M‑301), fingerprint modules
Protection: IP65, 1.2 m drop (MIL‑STD‑810G)
Certifications: MIL‑STD‑810G, CE, FCC, 3C
Operating Temp: -20°C to 55°C; Storage Temp: -40°C to 60°C
