Windows 11 Pro tablet ST11-U

10.1"Intel® Core i5-1235UIntel® Core i7-1255U

Product Overview

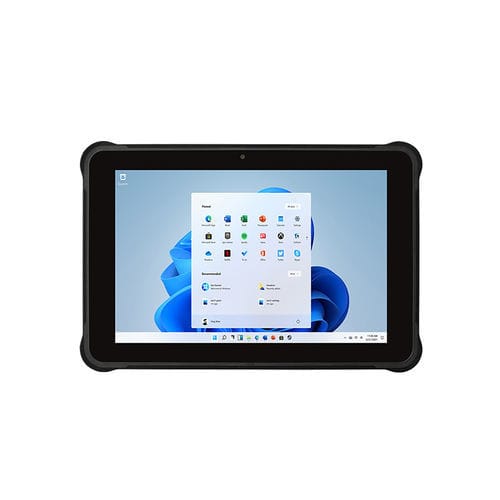

The ST11-U is a 10.1-inch rugged tablet running Windows 11 Pro with TPM2.0 support. It is available with Intel 12th Gen Core processors (i5-1235U or optional i7-1255U) and Intel Iris Xe graphics, supporting up to 64GB LPDDR5 RAM and up to 512GB M.2 storage. The 10.1-inch 1200×1920 display (450 nits) supports 10-point touch, stylus and wet-hand operation. Connectivity includes 4G LTE (SLM770A), WiFi 6 (AX201), Bluetooth 5.2 and NFC. The device features a 6000mAh battery with Type-C 65W fast charging, IP54 ingress protection, 1.2 m drop resistance and MIL-STD-810G certification. Modular options include UHF RFID, fingerprint reader and high-precision GPS, making the ST11-U suitable for Windows-based industrial and enterprise deployments.

Key Features

• Windows 11 Pro with TPM2.0 support
• Intel 12th Gen Core i5-1235U or optional i7-1255U
• Intel Iris Xe graphics; up to 64GB LPDDR5 RAM
• 10.1-inch 1200×1920, 450 nits, 10-point touch, stylus & wet-hand support
• 6000mAh battery with Type-C 65W fast charge
• 4G LTE multi-band, WiFi 6 (AX201), Bluetooth 5.2, NFC
• Rich I/O: HDMI, 2×USB3.2 Gen1 Type-A, USB-C Gen1 (PD/DP/Data/Charging), Gigabit RJ45, RS232
• Rugged: IP54, 1.2 m drop resistance, MIL-STD-810G
• Optional modules: UHF RFID, fingerprint AFM60, UM960 high-precision GPS, barcode scanner

Technical Specifications
Model: ST11-U
OS: Windows 11 Pro (TPM2.0)
CPU: Intel i5-1235U (10 cores/12 threads; 1.3–4.4 GHz, 15W); optional i7-1255U (1.7–4.7 GHz, 15W)
GPU: Intel Iris Xe (80EU; i7: 96EU)
RAM/Storage: Up to 64GB LPDDR5; M.2 2242 SATA up to 512GB
Display: 10.1-inch 1200×1920, 450 nits
Touch: 10-point touch; stylus and wet-hand support
Cameras: Front 5 MP; Rear 8 MP
Battery: 6000mAh (7.6V, 45.6Wh); ~2.5 h fast charge; ~5.5 h video playback; ~6 days standby
WWAN: Multi-band 4G LTE (SLM770A; EC25-AUX in NA)
GPS: BDS/GPS/GLONASS (optional UM960 high-precision)
WiFi/Bluetooth/NFC: WiFi 6 AX201; Bluetooth 5.2; NFC 13.56 MHz
I/O: HDMI×1; USB-A USB3.2 Gen1×2; USB-C USB3.2 Gen1×1 (PD/DP/Data/Charging); RJ45 Gigabit; RS232; 3.5mm jack; pogo pins
Ruggedness & Certs: IP54; 1.2 m drop; MIL-STD-810G; CE/FCC/3C
Size / Weight: 268.9×176.8×18 mm; ~1190 g

Application Scenarios

• Windows enterprise applications and field software
• Secure environments requiring TPM2.0 and enterprise management
• Logistics, asset tracking and RFID workflows
• Field service, inspections and outdoor industrial operations

Accessories & Options

• Included: DC charger (12V 4A), carry strap, wrist strap, screws, screwdriver
• Optional: Docking station, car holders (STA15 / STA03), UHF RFID modules (M-500 / M-301), Honeywell N4680 1D/2D scanner
