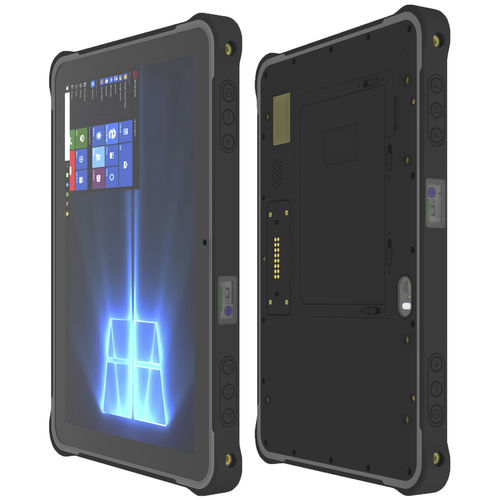

Windows 10 IoT Enterprise tablet ST11-W

Windows 10Windows 10 Pro10.1"

Product Overview
The ST11-W is a 10.1-inch Windows tablet designed for industrial and field use. It is powered by an Intel Cherry Trail Z8350 quad-core processor (1.44GHz, turbo up to 1.92GHz) and supports Windows 10 (Home/Pro/IoT). The device integrates 4GB RAM, 64GB storage, a 10.1" 1200×1920 450-nit 10-point touch display with stylus and wet-hand support, 2MP front and 5MP rear cameras, and a dual-battery system (12000mAh main + 2550mAh secondary) for extended operation. Connectivity includes 4G LTE (SLM770A), WiFi 802.11a/b/g/n/ac, Bluetooth 4.2 and NFC. The ST11-W meets IP65 dust/water protection, 1.2m drop resistance and MIL-STD-810G durability. Optional modules (UHF RFID, fingerprint, high-precision GPS, 1D/2D barcode) make it suitable for industrial, IoT and logistics applications.

Key Features

• Windows 10 (Home/Pro/IoT optional)
• Intel Cherry Trail Z8350 quad-core (1.44GHz, turbo up to 1.92GHz)
• 10.1" 1200×1920, 450 nits, 10-point touch; stylus & wet-hand support
• 4GB RAM / 64GB storage
• Dual-battery design: 12000mAh main + 2550mAh secondary
• Front 2MP / Rear 5MP cameras
• 4G LTE (SLM770A; EC25-AUX NA), WiFi 802.11a/b/g/n/ac, Bluetooth 4.2, NFC
• Multiple interfaces: USB 3.0 + USB 2.0, HDMI, RJ45, RS232, earphone, DC jack, SIM & TF slots, dual pogo-pin connectors
• Rugged: IP65, 1.2m drop resistance, MIL-STD-810G
• Optional modules: UHF RFID (M-500/M-301), Honeywell 1D/2D barcode, AFM60 fingerprint, UM960 high-precision GPS
• Compact: 268.9 × 176.8 × 18 mm; weight ~1140 ±50 g

Technical Specifications
OS: Windows 10 (Home/Pro/IoT optional)
CPU: Intel Cherry Trail Z8350 (Quad Core 1.44GHz; turbo up to 1.92GHz)
GPU: Intel HD Graphics 400
Memory/Storage: 4GB / 64GB
Display: 10.1"; 1200×1920; 450 nits
Touch: 10-point; stylus & wet-hand support
Cameras: Front 2MP; Rear 5MP
Battery: Main 12000mAh (3.8Vdc); Secondary 2550mAh
WWAN: Multi-band 4G LTE (SLM770A; EC25-AUX in North America)
GPS: BDS, GPS, GLONASS
WiFi/Bluetooth: 802.11a/b/g/n/ac; Bluetooth 4.2
NFC: 13.56 MHz, ISO14443 Type A
Interfaces: USB3.0 x1, USB2.0 x1, HDMI x1, RJ45 x1, RS232 x1, Earphone x1, DC jack, SIM & TF card slots, bottom/back pogo-pin connectors
Ruggedness: IP65; 1.2m drop resistance; MIL-STD-810G
Dimensions / Weight: 268.9 × 176.8 × 18 mm; ~1140 ±50 g
Operating Temp: -20°C to 55°C; Storage Temp: -40°C to 60°C
Certifications: MIL-STD-810G; CE; FCC; 3C

Application Scenarios

• Windows IoT and industrial IoT deployments
• Long-endurance field work requiring extended battery life
• Industrial logistics: scanning, data collection, asset management
• On-site data terminals and basic industrial automation

Technical characteristics

• Model: ST11-W
• OS options: Windows 10 Home / Pro / IoT
• CPU: Intel Cherry Trail Z8350 (1.44GHz; turbo 1.92GHz)
• RAM/ROM: 4GB / 64GB
• Display: 10.1" 1200×1920, 450 nits
• Batteries: 12000mAh + 2550mAh (dual battery)
• Connectivity: 4G LTE, WiFi 802.11a/b/g/n/ac, Bluetooth 4.2, NFC
• Interfaces: USB3.0, USB2.0, HDMI, RJ45, RS232, pogo-pins, SIM & TF slots
• Optional: UHF RFID, Honeywell 1D/2D barcode, fingerprint, high-precision GPS
• Ruggedness: IP65, 1.2m drop, MIL-STD-810G
