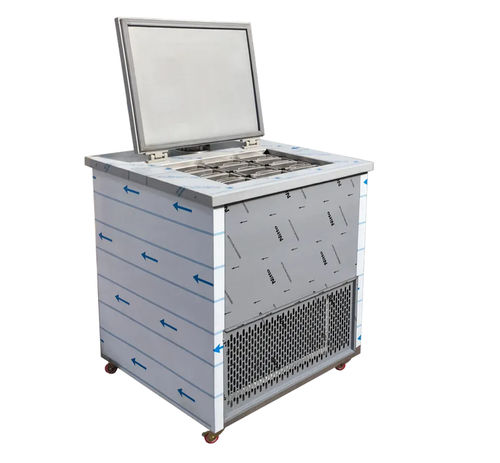

Block ice machine

for the food industry

Product Overview
The TAMUTOM 250 kg/day block ice machine is a modular brine-type unit designed for small and medium-sized businesses. It produces dense, slow-melting block ice for preserving fish, meat, fruits, vegetables and beverages during storage and transport. The unit provides reliable operation, low energy consumption and a compact footprint for installation in limited spaces, with straightforward operation and maintenance. It is intended as an economical on-site ice production solution and as an entry model for ice-resale businesses in hot-climate regions.

Technical Information — BRINE TYPE
Total Ice Making Capacity: 250 Kg / day
Ice Block Amount per Shift: 12 Blocks
Each Block Weight: 5 Kg (9cm * 16cm * 47cm)
Production Time per Shift: 4-5 Hours
Daily Block Production: 60 Pcs
Power Supply: 380-415 V, 3 Phase, 50-60Hz
Ice Temperature: -12°C
Refrigerant: Freon R404A
Unit Weight: 120 Kg
Unit Dimensions: 90 cm x 90 cm x 140 cm
Power Consumption: 0.94 KW/h
Compressor Capacity: 1.5 HP
Condenser and Capacity: Air Condenser / 3850 M³/H

Applications and Benefits
The machine is suitable for bakeries, pastry shops, butcher shops, fish markets, grocery stores, restaurants, cafés and other food-related businesses that require a steady ice supply. Producing ice on-site reduces procurement costs, removes dependency on external suppliers and ensures immediate access to fresh block ice. The high-density blocks provide longer-lasting cooling than cube ice, making them advantageous in hot climates and during transport.

Features

• 250 kg daily block ice production capacity
• Designed for small businesses and startups
• Low energy consumption
• Compact, space-saving footprint for easy installation
• High-density, slow-melting block ice
• Simple operation and maintenance
• Suitable for on-site ice production and resale activities
• Adapted for use in hot-climate regions
• Construction suitable for regular commercial use

Technical specifications

• Total Ice Making Capacity: 250 Kg / day
• Ice Block Amount per Shift: 12 Blocks
• Each Block Weight: 5 Kg (9cm * 16cm * 47cm)
• Production Time per Shift: 4-5 Hours
• Daily Block Production: 60 Pcs
• Power Supply: 380-415 V, 3 Phase, 50-60Hz
• Ice Temperature: -12°C
• Refrigerant: Freon R404A
• Unit Weight: 120 Kg
• Unit Dimensions: 90 cm x 90 cm x 140 cm
• Power Consumption: 0.94 KW/h
• Compressor Capacity: 1.5 HP
• Condenser: Air Condenser / 3850 M³/H
