Ice maker BIM3TCO

Product Overview

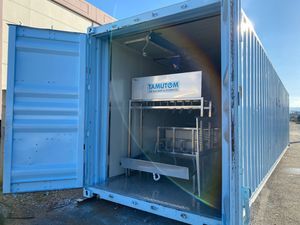

The 3,000 kg/day containerized block ice machine Tamutom BIM3TCO is an integrated, transportable ice production unit built into a standard 20 FT ISO insulated container. It is designed for coastal fishing communities, mobile seafood processors, small ports, local food distribution centers and other sites with limited cold storage infrastructure. All refrigeration components, freezing tanks, electrical panels and control units are factory-installed inside the container to enable rapid deployment without civil works.

Brine Type - Technical Data
Total Ice Making Capacity: 3000 Kg / Day
Ice Block Amount per Shift: 84 Blocks
Each Block Weight: 12 Kg (10 cm × 20 cm × 70 cm)
Production Time per Shift: 7-8 Hours
Daily Block Production: 252 Pcs
Power Supply: 380-415 V, 3 Phase, 50-60 Hz
Ice Temperature: -12 °C
Refrigerant: Freon R404A
Unit Weight: 3500 Kg
Unit Dimensions: 20 FT Standard Container
Power Consumption: 11.00 kW/h
Compressor Capacity: 15 HP
Condenser and Capacity: Air-Cooled Condenser / 22,740 m³/h
Type: 20 FT Standard Insulated Container with Sandwich Panels

Key Features and Commercial Benefits
The containerized design allows the Tamutom BIM3TCO to be delivered, placed and operated with minimal site preparation. Block ice offers extended melt time, making it suitable for long-distance transport by open trucks, fishing vessels and non-refrigerated containers, which helps preserve seafood, meat, poultry, fruits and vegetables during handling and transit. The unit supports generator or renewable power operation for remote locations, emergency response and temporary industrial sites. Typical users include fisheries, beverage distributors, meat processors, rural cooperatives, disaster relief organizations and military logistics units.

Technical specifications

• Total Ice Making Capacity: 3000 Kg / Day
• Ice Block Amount per Shift: 84 Blocks
• Each Block Weight: 12 Kg (10 cm × 20 cm × 70 cm)
• Production Time per Shift: 7-8 Hours
• Daily Block Production: 252 Pcs
• Power Supply: 380-415 V, 3 Phase, 50-60 Hz
• Ice Temperature: -12 °C
• Refrigerant: Freon R404A
• Unit Weight: 3500 Kg
• Unit Dimensions: 20 FT Standard Container
• Power Consumption: 11.00 kW/h
• Compressor Capacity: 15 HP
• Condenser and Capacity: Air-Cooled Condenser / 22,740 m³/h
• Type: 20 FT Standard Insulated Container with Sandwich Panels
