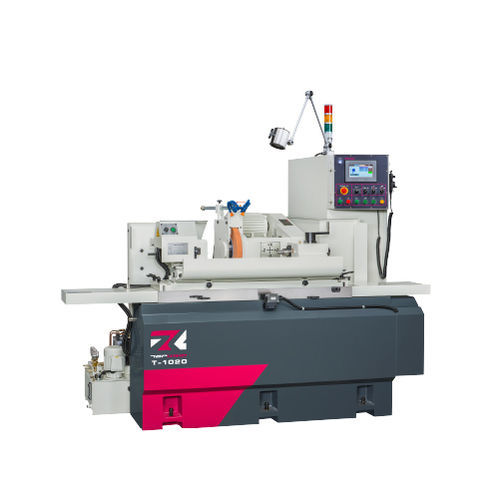

Cylindrical grinding machine T -1020

workpiecehorizontalNC

INTRODUCTION
The T-1020 is an entry-level CNC cylindrical grinding machine offering an extensive working range: a maximum swing over table of Ø270 mm and a distance between centers of 500 mm. Intended for small-to-medium multi-step shaft components, it supports grinding diameters up to Ø250 mm. X and Z axes are servo-driven and the machine is equipped with an intuitive graphical user interface featuring conversational numerical programming for simplified operator use. Combined with a rigid structure and an automatic hydrostatic lubrication system, the T-1020 provides stable feed and consistent micron-level precision.

▎CAPACITY
Swivel Over Table: Ø270 mm
Distance Between Centers: 500 mm
Max. Grinding Dia.: Ø250 mm
Grinding Wheel: Ø355 x 50 x Ø127 mm


▶ MACHINE FEATURE

HIGH PERFORMANCE GRAPHICAL USER INTERFACE
▪ Latest graphical dialog interface provides a convenient, simple and safe operating environment.
▪ Conversational numerical programming can automatically execute grinding cycles, dressing cycles, compensation and other commands.
▪ One-key memorization of mechanical origin, grinding, dressing and compensation coordinates.
▪ Various grinding and dressing methods selectable according to work requirements.

RIGID MACHINE BASE
▪ Reinforced structural rigidity with thicker sliding-seat mechanism and 1V1 flat slideway structure.
▪ Lubrication system designed on the principle of static pressure to ensure best precision and stability.

HYDROSTATIC LUBRICATION SYSTEM
▪ Table and wheelhead slideways lubricated by an advanced automatic hydrostatic lubrication system to improve smoothness and feed-rate precision.

WHEELHEAD CONSTRUCTION
▪ G.W. spindle made of alloy steel SNCM-220 with normalization, quenching & tempering, carburizing and cryogenic treatments, then precision ground and mirror-finished; surface hardness above HRC62 for long-term precision and wear resistance.

WORKHEAD AND TAILSTOCK
▪ Work spindle uses precision-grade bearings for enhanced stability.
▪ Workhead is driven by a servo motor with continuous infinitely variable speed.
▪ Fixed-type work spindle improves accuracy and stability.
▪ Tailstock uses oil-bath lubrication and includes an oil gauge for monitoring.

DIAMOND TOOL HOLDER
▪ Dressing device mounted on the Z-axis slide to minimize dressing-position calibration errors.
▪ Various dressing devices available to meet component requirements.


▶ SPECIFICATION

Capacity
- Swing Over Table: Ø270 mm
- Distance Between Centers: 500 mm
- Max. Grinding Diameter: Ø250 mm
- Max. Grinding Length: 500 mm
- Max. Load Held Between Centers: 60 kg
- Center Height (from table to center tip): 135 mm

Grinding Wheel
- Size (O.D. x width x I.D.): Ø355 x 38~50 x Ø127 mm
- Linear Velocity: 33 m/sec

Worktable
- Swiveling Angle: 0° ~ +12°

Workhead
- Swiveling Angle: -30° ~ +90°
- Center Tapper (workhead / tailstock): MT. No. 3 (opt.: MT. No. 4)
- Spindle Speed: 10 ~ 300 rpm
- Max. Load of Spindle (tool holder included): 15 kgs (Max. Length: 150 mm)

Tailstock
- Center Tapper: MT. No. 3 (opt.: MT. No. 4)
- Center Moving: Manual type
- Tailstock Stroke: 25 mm

X-axis Travel
- Max. Travel: 220 mm
- Rapid Feedrate Speed: 6000 mm/Min
- Auto. Feeding Speed: 0.001 ~ 2000 mm/Min
- Min. Feeding Setting: 0.001 mm

Z-axis Travel
- Max. Travel: 760 mm
- Rapid Feedrate Speed: 6000 mm/Min
- Auto. Feeding Speed: 0.001 ~ 2000 mm/Min
- Min. Feeding Setting: 0.001 mm

Drive Motors
- Grinding Wheel Spindle: 3.75 kW
- Workhead Spindle Motor: 0.85 kW (AC servo)
- Wheelhead Feed X-axis: 1.0 kW (AC servo)
- Table Feed Z-axis: 1.5 kW (AC servo)
- Lubrication Oil Pump: 0.075 kW
- Wheel Spindle Lubrication Oil Pump: 0.18 kW
- Coolant Pump: 0.18 kW

Tank Capacities
- Wheel Spindle Lubrication Oil Tank: 14 L
- Lubrication Oil Tank: 15 L

Machine
- Dimension (L x W x H): 2770 x 1630 x 2112 mm
- Net Weight: 3000 kg
- Center Height (from floor to center tip): 1057 mm

* The mentioned specifications & dimensions are subject to change without notice.


▶ ACCESSORIES

STANDARD ACCESSORIES

• Grinding Wheel and Flange x 1 set
• Carbide Tipped Work Centers (2 pcs/set) x 1 set
• Diamond Tool Holder (slider mounted type) x 1 set
• Electric System x 1 set
• Lubrication System x 1 set
• Coolant System x 1 set
• Work Lamp x 1 set
• Tools (Leveling pad) and Tool Box x 1 set

OPTIONAL ACCESSORIES

• Internal Grinding Attachment (incl. one spindle and G.W. inverter)
• Hydraulic Tailstock
• Cam-locked Type Driving Dog
• Work Holders 2 pcs/set
• 2-Point Steady Rest
• 3-Point Steady Rest
• 3-jaw Chuck
• 4-jaw Chuck
• Spare Grinding Wheel and Flange
• Diamond Roller Dressing Device (connecting with workhead by flange)
• Wheel Balancing Stand & Arbor
• Automatic Grinding Wheel Balancer
• Touch Probe Gauge
• Auto. In-Process Gauge
• Semi-Splash Guard
• Fully Enclosed Splash Guard
• Magnetic Coolant Separator
• Paper Filter
• Oil Mist Collector
