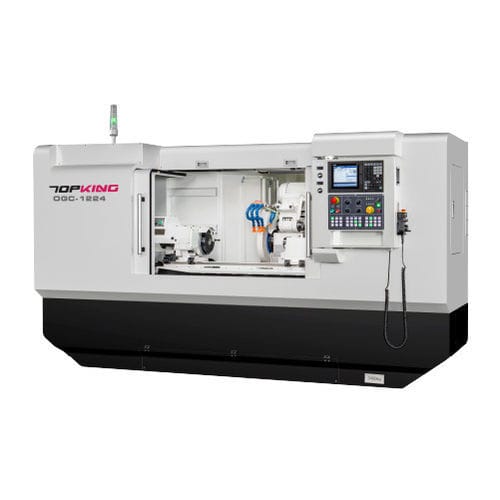

Cylindrical grinding machine OGC series

workpiecehorizontalCNC

INTRODUCTION
The OGC series CNC cylindrical (external) grinders OGC-1224 and OGC-1624 are built for precision external grinding of shafts, rolls and mould components. X and Z axes use precision ball screws with servo drives and the machine is controlled via an integrated CNC with graphical user interface to simplify program editing and setup.

▎CAPACITY — OGC-1224 | OGC-1624
Swing over table: Ø320 mm | Ø420 mm
Distance between centers: 600 mm
Max. grinding diameter: Ø300 | Ø400 mm
Max. grinding length: 600 mm
Grinding wheel: Ø405 x 50 x Ø127 mm


▶ MACHINE FEATURE

USER FRIENDLY OPERATION SYSTEM
▪ Integrated CNC controller with graphical GUI allows dividing complex parts into multiple grinding steps with graphical guidance, reducing the need for manual G/M code programming.

RIGID MACHINE BASE
▪ Heavy-duty welded structure designed for high stiffness to maintain grinding accuracy under load.

HYDROSTATIC LUBRICATION SYSTEM
▪ Table and wheelhead slideways use automatic hydrostatic lubrication to improve smoothness and feed precision.

WHEELHEAD CONSTRUCTION
▪ Grinding wheel spindle manufactured from SNCM-220 alloy steel with normalization, quenching/tempering, carburizing and cryogenic treatments followed by precision grinding and mirror finishing; surface hardness > HRC62°.

WORKHEAD AND TAILSTOCK
▪ Work spindle fitted with precision bearings
▪ Servo-driven workhead for stepless speed control
▪ Tailstock with oil-bath lubrication and oil level gauge.

DIAMOND TOOL HOLDER
▪ Tailstock-mounted diamond dresser available
▪ Multiple dressing options for component requirements.


▶ SPECIFICATION — OGC-1224 | OGC-1624

Capacity
- Swing over table: Ø320 mm | Ø420 mm
- Distance between centers: 600 mm
- Max. grinding diameter: Ø300 mm | Ø400 mm
- Max. grinding length: 600 mm
- Max. load between centers: 100 kg | 150 kg
- Center height (table to center): 160 mm | 210 mm

Grinding wheel
- Size (O.D. x Width x I.D.): Ø405 x 50 x Ø127 mm
- Linear Velocity: 45 m/sec

Worktable
- Swiveling Angle: -2° ~ +10°

Workhead
- Swiveling Angle: -30° ~ +90°
- Center Taper: MT No. 4
- Spindle Speed: 10 ~ 300 rpm
- Max. Load of Spindle (tool holder included): 35 kg (max. length:150 mm)

Tailstock
- Center Taper: MT No. 4
- Center Moving: Manual Type
- Tailstock Stroke: 25 mm

X-axis Travel
- Max. Travel: 250 mm
- Rapid Feedrate Speed: 6000 mm/min
- Auto. Feeding Speed: 0.001 ~ 2000 mm/min
- Min. Feeding Setting: 0.001 mm

Z-axis Travel
- Max. Travel: 830 mm
- Rapid Feedrate Speed: 6000 mm/min
- Auto. Feeding Speed: 0.001 ~ 2000 mm/min
- Min. Feeding Setting: 0.001 mm

Drive Motors
- Grinding Wheel Spindle: 3.75 kW (5.5 kW)
- Workhead Spindle Motor (servo motor): 0.85 kW (1.3 kW) (AC servo motor)
- Wheelhead Feed X-axis (servo motor): 1.5 kW (AC servo motor)
- Table Feed Z-axis (servo motor): 1.5 kW (AC servo motor)
- Wheel Spindle Lubrication Oil Pump: 0.18 kW
- Lubrication Oil Pump: 0.075 kW
- Coolant Pump: 0.18 kW

Tank Capacities
- Wheel Spindle Lubrication Oil Tank: 18 L
- Lubrication Oil Tank: 15 L

Machine
- Dimension (L x W x H): 3420 x 2730 x 2415 mm
- Net Weight: 3600 kg | 3800 kg
- Center Height (floor to center tip): 1095 mm | 1145 mm

* The mentioned specifications & dimensions are subject to change without notice.


STANDARD ACCESSORIES

• CNC Controller (Brand: Mitsubishi) x1 set
• Grinding Wheel and Flange x1 set
• Carbide Tipped Work Centers (2 pcs/set) x1 set
• Diamond Tool Holder (tailstock mounted type) x1 set
• Linear Scale for X-axis x1 set
• Grinding Wheel Inverter x1 set
• Electric System x1 set
• Fully Enclosed Splash Guard x1 set
• Lubrication System x1 set
• Coolant System x1 set
• Work Lamp x1 set
• Tools (Leveling pad) and Tool Box x1 set

OPTIONAL ACCESSORIES

• Internal Grinding Attachment (includes spindle and G.W. inverter)
• Hydraulic Tailstock
• Cam-locked Driving Dogs
• Work Holder (2 pcs/set)
• 2-point Steady Rest
• Adjustable 3-point Steady Rest
• Adjustable 3-jaw Scroll Chuck
• Adjustable 4-jaw Scroll Chuck
• Wheel Balancing Stand and Arbor
• Auto. Grinding Wheel Balancer
• Spare Grinding Wheel and Flange
• Roller Dresser Device
• Touch Probe Gauge
• Auto. In-Process Gauge
• Gap control
• Magnetic Coolant Separator
• Paper Filter
• Oil Mist Collector
