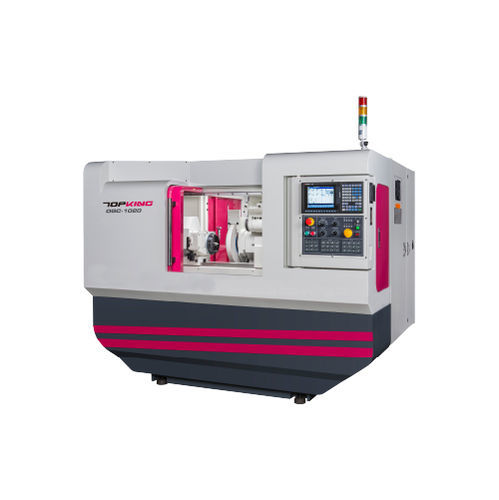

Cylindrical grinding machine OGC-1020

workpiecehorizontalCNC

INTRODUCTION
TOPKING CNC Cylindrical Grinder OGC-1020 is built for high-precision external cylindrical grinding. Both X and Z axes are driven by precision ball screws and AC servo motors. The integrated CNC controller with graphical user interface (GUI) simplifies editing of grinding and dressing processes without complex G/M code programming, providing an efficient operating environment for production and R&D workshops.

▎CAPACITY
Swivel Over Table: Ø270 mm
Distance Between Centers: 500 mm
Max. Grinding Diameter: Ø250 mm
Max. Grinding Length: 500 mm
Grinding Wheel: Ø355 x 38~50 x Ø127 mm


▶ MACHINE FEATURE

USER FRIENDLY OPERATION SYSTEM
▪ Integrated advanced CNC control with GUI allows operators to split complex parts into multiple grinding processes via graphical guidance and to edit grinding and dressing parameters numerically without extensive programming.

RIGID MACHINE BASE
▪ Robust machine structure increases stiffness compared with lightweight designs
▪ Improving stability during heavy and precision grinding operations.

HYDROSTATIC LUBRICATION SYSTEM
▪ Table and wheelhead slideways are lubricated by an automatic hydrostatic lubrication system.
▪ Improved lubrication increases smoothness and feed precision, enabling higher machining accuracy.

WHEELHEAD CONSTRUCTION
▪ The grinding wheel spindle is manufactured from high-quality alloy steel (SNCM-220) and undergoes normalization
▪ Quenching/tempering, carburizing, cryogenic treatment
▪ Precision grinding and mirror finishing. Surface hardness exceeds HRC62
▪ Ensuring long-term precision and wear resistance.

WORKHEAD AND TAILSTOCK
▪ Work spindle uses precision bearings for optimal stability.
▪ Workhead is servo-driven with stepless speed control (10–300 rpm).
▪ Fixed-type work spindle improves accuracy and repeatability.
▪ Tailstock features oil-bath lubrication with oil gauge for monitoring.

DIAMOND TOOL HOLDER
▪ Slider-mounted dressing device is mounted on the Z-axis slide to minimize repositioning errors after table angle adjustments. ▪ ▪ ▪ ▪ Multiple dressing options are available to suit component requirements.


▶ SPECIFICATION

Capacity
- Swing Over Table: Ø270 mm
- Distance Between Centers: 500 mm
- Max. Grinding Diameter: Ø250 mm
- Max. Grinding Length: 500 mm
- Max. Load Between Centers: 60 kg
- Center Height (table to center tip): 135 mm

Grinding Wheel
- Size (O.D. x Width x I.D.): Ø355 x 38~50 x Ø127 mm
- Linear Velocity: 45 m/sec

X-axis Travel
- Max. Travel: 220 mm
- Rapid Feedrate Speed: 6000 mm/min
- Auto. Feeding Speed: 0.001 ~ 2000 mm/min
- Min. Feeding Setting: 0.001 mm

Z-axis Travel
- Max. Travel: 760 mm
- Rapid Feedrate Speed: 6000 mm/min
- Auto. Feeding Speed: 0.001 ~ 2000 mm/min
- Min. Feeding Setting: 0.001 mm

Drive Motors
- Grinding Wheel Spindle: 3.75 kW (5.5 kW)
- Workhead Spindle Motor (servo motor): 0.85 kW (AC servo motor)
- Wheelhead Feed X-axis (servo motor): 1.0 kW (AC servo motor)
- Table Feed Z-axis (servo motor): 1.5 kW (AC servo motor)
- Wheel Spindle Lubrication Oil Pump: 0.18 kW
- Lubrication Oil Pump: 0.075 kW
- Coolant Pump: 0.18 kW

Tank Capacities
- Wheel Spindle Lubrication Oil Tank: 14 L
- Lubrication Oil Tank: 15 L

Machine
- Size (L x W x H): 2200 x 1860 x 2140 mm
- Net Weight: 3000 kg
- Center Height (from floor to center tip): 1057 mm

* The mentioned specifications & dimensions are subject to change without notice.


STANDARD ACCESSORIES

• CNC Controller (Mitsubishi) x1 set
• Grinding Wheel and Flange x1 set
• Carbide Tipped Work Centers (2 pcs) x1 set
• Diamond Tool Holder (slider mounted type) x1 set
• Linear Scale for X-axis x1 set
• Grinding Wheel Inverter x1 set
• Electric System x1 set
• Fully Enclosed Splash Guard x1 set
• Lubrication System x1 set
• Coolant System x1 set
• Work Lamp x1 set
• Tools (leveling pad) and Toolbox x1 set

OPTIONAL ACCESSORIES

• Internal Grinding Attachment (incl. one spindle and G.W. inverter)
• Hydraulic Tailstock
• Cam-locked Driving Dogs
• Work Holder (2 pcs)
• 2-point Steady Rest
• Adjustable 3-point Steady Rest
• Adjustable 3-jaw Scroll Chuck
• Adjustable 4-jaw Scroll Chuck
• Wheel Balancing Stand and Arbor
• Automatic Grinding Wheel Balancer
• Spare Grinding Wheel and Flange
• Roller Dresser Device
• Touch Probe Gauge
• Automatic In-Process Gauge
• Gap Control
• Magnetic Coolant Separator
• Paper Filter
• Oil Mist Collector
