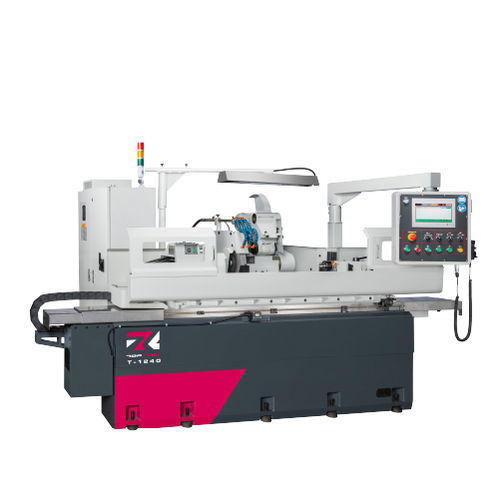

Cylindrical grinding machine T series

for workpieceshorizontalNC

INTRODUCTION
TOPKING Cylindrical Grinder – T series is suitable for step grinding. The X and Z axes are driven by NC servo motors with ball screws. Eliminate the complicated program editing of traditional CNC control systems. The T-Series is equipped with a high-performance control system with GUI, providing a convenient operating environment for the operator.

▎CAPACITY — T-1240 | T-1640
Swivel Over Table: Ø320 mm | Ø420 mm
Distance Between Centers: 1000 mm
Max. Grinding Diameter: Ø300 mm | Ø400 mm
Grinding Wheel: Ø405 x 50 x Ø127 mm


▶ MACHINE FEATURES

HIGH PERFORMANCE GRAPHICAL USER INTERFACE
▪ TOPKING's graphic dialogue operation interface provides a convenient, simple and safe operating environment. Numerical programming settings can automatically execute grinding cycles, dressing cycles, corrections and other commands. It can memorize coordinates of mechanical origin, grinding, dressing and compensation with one key. Various grinding and dressing methods can be selected according to work requirements.

RIGID MACHINE BASE
▪ The machine structure greatly strengthens structural rigidity using a thicker and stronger sliding seat mechanism, slideway 1V 1 flat structure, and a lubrication system designed by the principle of static pressure to provide high precision and stability during grinding.

HYDROSTATIC LUBRICATION SYSTEM
▪ The slideways of the table and the wheel head are lubricated by an advanced automatic hydrostatic lubrication system. This enhances lubrication performance and grinding smoothness, and improves precision of feed rate and machining accuracy.

WHEELHEAD CONSTRUCTION
▪ The G.W. spindle is made of high-quality alloy steel SNCM-220 with normalization, quenching, tempering, carburizing heat treatment and cryogenic treatment followed by precision grinding and mirror treatment to reach surface hardness above HRC62°, ensuring long-term precision and wear resistance.

WORKHEAD AND TAILSTOCK
▪ The work spindle utilizes precision-grade bearings for stability. The workhead is driven by a servo motor enabling continuous infinitely variable speed. The workhead features a fixed-type work spindle for enhanced accuracy. The tailstock uses an oil-bath lubrication system with an oil gauge for monitoring.

DIAMOND TOOL HOLDER
▪ Diverse dressing devices are available and adaptable to component requirements.


▶ SPECIFICATION — T-1240 | T-1640

Capacity
- Swing Over Table: Ø320 mm | Ø420 mm
- Distance Between Centers: 1000 mm
- Max. Grinding Diameter: Ø300 mm | Ø400 mm
- Max. Grinding Length: 1000 mm
- Max. Load Held Between Centers: 160 kg | 150 kg
- Center Height (from table to center tip): 160 mm | 210 mm

Grinding Wheel
- Size (O.D. x width x I.D.): Ø405 x 50 x Ø127 mm
- Linear Velocity: 33 m/sec

Worktable
- Swiveling Angle: -3° ~ +8°

Workhead
- Swiveling Angle: -30° ~ +90°
- Center Tapper: MT. No. 4
- Spindle Speed: 10 ~ 300 rpm
- Max. Load of Spindle (tool holder included): 35 kg (max. length:150 mm)

Tailstock
- Center Tapper: MT. No. 4
- Center Moving: Manual Type
- Tailstock Stroke: 25 mm

X-axis Travel
- Max. Travel: 250 mm
- Rapid Feedrate Speed: 6000 mm/Min
- Auto. Feeding Speed: 0.001 ~ 2000 mm/Min
- Min. Feeding Setting: 0.001 mm

Z-axis Travel
- Max. Travel: 1315 mm
- Rapid Feedrate Speed: 6000 mm/Min
- Auto. Feeding Speed: 0.001 ~ 2000 mm/Min
- Min. Feeding Setting: 0.001 mm

Drive Motors
- Grinding Wheel Spindle: 3.75 kW (5.5 kW)
- Workhead Spindle Motor (servo motor): 1.3 kW (AC servo motor)
- Wheelhead Feed X-axis (servo motor): 1.5 kW (AC servo motor)
- Table Feed Z-axis (servo motor): 1.5 kW (AC servo motor)
- Lubrication Oil Pump: 0.37 kW
- Wheel Spindle Lubrication Oil Pump: 0.18 kW
- Coolant Pump: 0.18 kW

Tank Capacities
- Wheel Spindle Lubrication Oil Tank: 18 L
- Lubrication Oil Tank: 22 L

Machine
- Dimension (L x W x H): 3995 x 2440 x 2200 mm
- Net Weight: 3200 kg | 3400 kg
- Center Height (from floor to center tip): 1095 mm | 1145 mm

* The mentioned specifications & dimensions are subject to change without notice.


▶ ACCESSORIES

STANDARD ACCESSORIES

• Grinding Wheel and Flange x 1 set
• Diamond Tool Holder (tailstock mounted type) x 1 set
• Electric System x 1 set
• Lubrication System x 1 set
• Coolant System x 1 set
• Work Lamp x 1 set
• Tools (Leveling pad) and Tool Box x 1 set

OPTIONAL ACCESSORIES

• Internal Grinding Attachment (incl. one spindle and G.W. inverter)
• Hydraulic Tailstock
• Cam-locked Type Driving Dog
• Work Holders 2 pcs/set
• 2-Point Steady Rest
• 3-Point Steady Rest
• 3-jaw Chuck
• 4-jaw Chuck
• Spare Grinding Wheel and Flange
• Diamond Roller Dressing Device (connecting with workhead by flange)
• Wheel Balancing Stand & Arbor
• Automatic Grinding Wheel Balancer
• Touch Probe Gauge
• Auto. In-Process Gauge
• Semi-Splash Guard
• Fully Enclosed Splash Guard
• Magnetic Coolant Separator
• Paper Filter
• Oil Mist Collector
