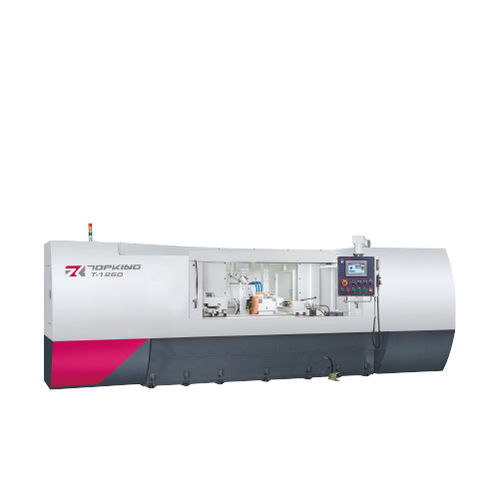

Cylindrical grinding machine T series

workpiecehorizontalNC

INTRODUCTION
TOPKING Cylindrical Grinder — T series is designed for multi-step and step grinding of cylindrical parts. X and Z axes are driven by NC servo motors with ball screws. The T-Series integrates a high-performance graphical control system that simplifies programming and enables automatic execution of grinding and dressing cycles, corrections and coordinate memorization for mechanical origin, grinding, dressing and compensation.

▎CAPACITY — T-1260 | T-1660
Swivel Over Table: Ø320 | Ø420 mm
Distance Between Centers: 1500 mm
Max. Grinding Dia.: Ø300 | Ø400 mm
Grinding Wheel: Ø405 x 50 x Ø127 mm


▶ MACHINE FEATURE

HIGH PERFORMANCE GRAPHICAL USER INTERFACE
▪ Graphic dialogue interface provides an intuitive operating environment. Numerical programming automates grinding and dressing cycles, corrections and other commands. Single-key coordinate memory supports mechanical origin, grinding, dressing and compensation. Multiple grinding and dressing methods selectable to match workpiece requirements.

RIGID MACHINE BASE
▪ Reinforced structural design with a thicker sliding seat mechanism, 1V 1 flat slideway structure and a static-pressure-based lubrication design to ensure high precision and stability during grinding.

HYDROSTATIC LUBRICATION SYSTEM
▪ Table and wheelhead slideways use an automatic hydrostatic lubrication system to improve lubrication consistency, grinding smoothness and feed precision.

WHEELHEAD CONSTRUCTION
▪ G.W. spindle manufactured from alloy steel SNCM-220 with multiple heat treatments, precision grinding and mirror finishing; surface hardness above HRC62 to ensure long-term precision and wear resistance.

WORKHEAD AND TAILSTOCK
▪ Work spindle fitted with precision bearings and servo-driven variable speed. Fixed-type work spindle improves accuracy. Tailstock uses oil-bath lubrication and includes an oil gauge for monitoring.

DIAMOND TOOL HOLDER
▪ Tailstock-mounted diamond tool holder provided. Various dressing devices available to suit component needs.


▶ SPECIFICATION — T-1260 | T-1660

Capacity
- Swing Over Table: Ø320 mm | Ø420 mm
- Distance Between Centers: 1500 mm
- Max. Grinding Diameter: Ø300 mm | Ø400 mm
- Max. Grinding Length: 1500 mm
- Max. Load Held Between Centers: 100 kg | 150 kg
- Center Height (from table to center tip): 160 mm | 210 mm

Grinding Wheel
- Size (O.D. x width x I.D.): Ø405 x 50 x Ø127 mm
- Linear Velocity: 33 m/sec

Worktable
- Swiveling Angle: -3° ~ +8°

Workhead
- Swiveling Angle: -30° ~ +90°
- Center Tapper: MT. No. 4
- Spindle Speed: 10 ~ 300 rpm
- Max. Load of Spindle (tool holder included): 35 kg (max. length:150 mm)

Tailstock
- Center Tapper: MT. No. 4
- Center Moving: Manual Type
- Tailstock Stroke: 25 mm

X-axis Travel
- Max. Travel: 250 mm
- Rapid Feedrate Speed: 6000 mm/Min
- Auto. Feeding Speed: 0.001 ~ 2000 mm/Min
- Min. Feeding Setting: 0.001 mm

Z-axis Travel
- Max. Travel: 1265 mm
- Rapid Feedrate Speed: 6000 mm/Min
- Auto. Feeding Speed: 0.001 ~ 2000 mm/Min
- Min. Feeding Setting: 0.001 mm

Drive Motors
- Grinding Wheel Spindle: 3.75 kW (5.5 kW)
- Workhead Spindle Motor (servo motor): 1.8 kW (AC servo motor)
- Wheelhead Feed X-axis (servo motor): 1.5 kW (AC servo motor)
- Table Feed Z-axis (servo motor): 3.5 kW (AC servo motor)
- Lubrication Oil Pump: 0.37 kW
- Wheel Spindle Lubrication Oil Pump: 0.18 kW
- Coolant Pump: 0.18 kW

Tank Capacities
- Wheel Spindle Lubrication Oil Tank: 18 L
- Lubrication Oil Tank: 22 L

Machine
- Dimension (L x W x H): 6178 x 2910 x 2310 mm
- Net Weight: 4100 kg | 4300 kg
- Center Height (from floor to center tip): 1095 mm | 1145 mm

* The mentioned specifications & dimensions are subject to change without notice.


▶ ACCESSORIES

STANDARD ACCESSORIES

• Grinding Wheel and Flange x 1 set
• Carbide Tipped Work Centers (2 pcs/set) x 1 set
• Diamond Tool Holder (tailstock mounted type) x 1 set
• Electric System x 1 set
• Lubrication System x 1 set
• Coolant System x 1 set
• Work Lamp x 1 set
• Tools (Leveling pad) and Tool Box x 1 set

OPTIONAL ACCESSORIES

• Internal Grinding Attachment (incl. one spindle and G.W. inverter)
• Hydraulic Tailstock
• Cam-locked Type Driving Dog
• Work Holders 2 pcs/set
• 2-Point Steady Rest
• 3-Point Steady Rest
• 3-jaw Chuck
• 4-jaw Chuck
• Spare Grinding Wheel and Flange
• Diamond Roller Dressing Device (connecting with workhead by flange)
• Wheel Balancing Stand & Arbor
• Automatic Grinding Wheel Balancer
• Touch Probe Gauge
• Auto. In-Process Gauge
• Semi-Splash Guard
• Fully Enclosed Splash Guard
• Magnetic Coolant Separator
• Paper Filter
• Oil Mist Collector
