INTRODUCTION

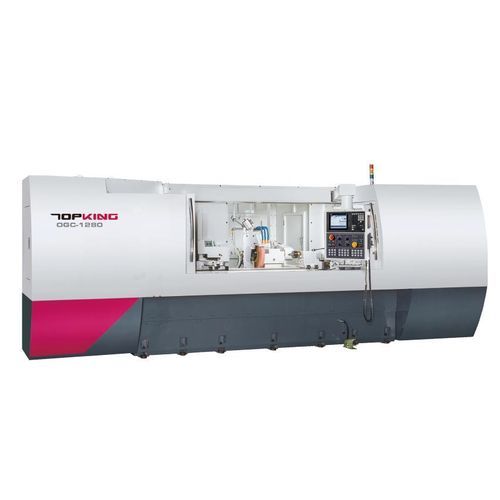

TOPKING CNC Cylindrical Grinder — OGC series is engineered for high-precision external cylindrical grinding. Both X and Z axes are driven by precision ball screws and servo motors and the machines integrate a user-oriented CNC system with graphical interface for simplified process setup and operation.

CAPACITY
Swing Over Table: Ø320 / Ø420 mm
Distance Between Centers: 2000 mm
Max. Grinding Diameter: Ø300 / Ø400 mm
Max. Grinding Length: 2000 mm
Grinding Wheel: Ø405 x 50 x Ø127 mm

MACHINE FEATURE
USER FRIENDLY OPERATION SYSTEM
Built-in advanced CNC controller with GUI guides operators through graphical process division for grinding and dressing. No manual G/M coding required, easing setup and reducing programming time.

RIGID MACHINE BASE
Structure prioritizes rigidity over light-weight design to improve stability during heavy-duty grinding and maintain geometric accuracy.

HYDROSTATIC LUBRICATION SYSTEM
Table and wheelhead slideways use an automatic hydrostatic lubrication system to enhance smoothness and feed-rate precision.

WHEELHEAD CONSTRUCTION
The grinding wheel spindle is manufactured from SNCM-220 alloy steel and undergoes normalization, quenching/tempering, carburizing and cryogenic treatment, followed by precision grinding and polishing to exceed HRC62 for minimal deformation and long-term accuracy.

WORKHEAD AND TAILSTOCK
Work spindle uses precision bearings; servo-driven workhead provides continuous variable speed. Tailstock features oil-bath lubrication with oil level indicator and manual center movement (stroke 25 mm).

DIAMOND TOOL HOLDER
Tailstock-mounted diamond dresser with multiple dressing options to match component requirements.

GRINDING CYCLE
Graphical grinding and dressing sequences are provided for process guidance and repeatability.

SPECIFICATION

• Series: OGC series
• Models: OGC-1280, OGC-1680
• Distance Between Centers: 2000 mm
• Max. Grinding Diameter: Ø300 mm (OGC-1280) / Ø400 mm (OGC-1680)
• Max. Grinding Length: 2000 mm
• Grinding Wheel: Ø405 x 50 x Ø127 mm, linear velocity 45 m/sec
• X-axis travel: 250 mm; Z-axis travel: 2540 mm
• Grinding Wheel Spindle power: 3.75 kW (option 5.5 kW)
• Machine footprint: 7700 x 2470 x 2306 mm
• Net weight approx.: 6000 kg (OGC-1280) / 6200 kg (OGC-1680)

ACCESSORIES - STANDARD ACCESSORIES

• CNC Controller (Brand: Mitsubishi) x 1 set
• Grinding Wheel and Flange x 1 set
• Carbide Tipped Work Centers (2 pcs/set) x 1 set
• Diamond Tool Holder (tailstock mounted type) x 1 set
• Linear Scale for X-axis x 1 set
• Grinding Wheel Inverter x 1 set
• Electric System x 1 set
• Fully Enclosed Splash Guard x 1 set
• Lubrication System x 1 set
• Coolant System x 1 set
• Work Lamp x 1 set
• Tools (Leveling pad) and Tool Box x 1 set

ACCESSORIES - OPTIONAL ACCESSORIES

• Internal Grinding Attachment (incl. one spindle and G.W. inverter)
• Hydraulic Tailstock
• Cam-locked Driving Dogs
• Work Holder 2 pcs/set
• 2-point Steady Rest
• Adjustable 3-point Steady Rest
• Adjustable 3-jaw Scroll Chuck
• Adjustable 4-jaw Scroll Chuck
• Wheel Balancing Stand and Arbor
• Auto. Grinding Wheel Balancer
• Spare Grinding Wheel and Flange
• Roller Dresser Device
• Touch Probe Gauge
• Auto. In-Process Gauge
• Gap Control
• Magnetic Coolant Separator
• Paper Filter
• Oil Mist Collector
