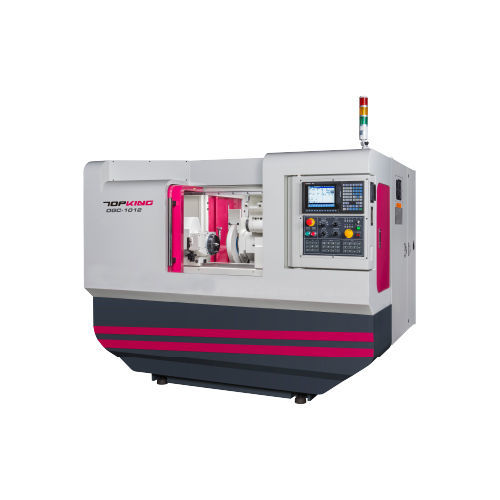

Cylindrical grinding machine OGC-1012

workpiecehorizontalCNC

INTRODUCTION
The OGC-1012 is a CNC cylindrical (external) grinder designed for precision external grinding of shafts and cylindrical components. Both X and Z axes are driven by precision ball screws and servo motors and the machine is controlled by an integrated CNC system with a graphical (GUI) operator interface to simplify process programming and dressing operations.

▎CAPACITY
Swing Over Table: Ø270 mm
Distance Between Centers: 300 mm
Max. Grinding Diameter: Ø250 mm
Max. Grinding Length: 300 mm
Grinding Wheel: Ø355 x 38~50 x Ø127 mm


▶ MACHINE FEATURES
USER-FRIENDLY OPERATION SYSTEM
▪ Built-in CNC control with GUI for graphical process editing and dressing—no complex G/M code programming required.

RIGID MACHINE BASE
▪ Heavy-duty structure engineered for improved rigidity and stability during grinding operations.

HYDROSTATIC LUBRICATION SYSTEM
▪ Automatic hydrostatic lubrication on table and wheelhead slideways for smooth feed and consistent precision.

WHEELHEAD CONSTRUCTION
▪ Wheel spindle made from alloy steel SNCM-220 with heat treatments and precision grinding
▪ Surface hardness above HRC62 for long-term concentricity and wear resistance.

WORKHEAD & TAILSTOCK
▪ Precision bearings and servo-driven workhead with stepless speed control
▪ Fixed spindle for accuracy
▪ Tailstock with oil-bath lubrication and oil level sight.

DIAMOND TOOL HOLDER (slider mounted type)
▪ Dressing device mounted on Z-axis slide to reduce dressing-related errors
▪ Multiple dressing devices available.


▶ SPECIFICATION

Capacity
- Swing Over Table: Ø270 mm
- Distance Between Centers: 300 mm
- Max. Grinding Diameter: Ø250 mm
- Max. Grinding Length: 300 mm
- Max. Load Held Between Centers: 60 kg
- Center Height (from table to center tip): 135 mm

Grinding Wheel
- Size (O.D. x Width x I.D.): Ø355 x 38~50 x Ø127 mm
- Linear Velocity: 45 m/sec

Worktable
- Swiveling Angle: 0° ~ 12°

Workhead
- Swiveling Angle: -30° ~ +90°
- Center Taper: MT No. 3 (opt.: MT No. 4)
- Spindle Speed: 10 ~ 300 rpm
- Max. Load of Spindle (tool holder included): 15 kg (Max. Length: 150 mm)

Tailstock
- Center Taper: MT No. 3 (opt.: MT No. 4)
- Center Moving: Manual type
- Tailstock Stroke: 25 mm

X-axis Travel
- Max. Travel: 220 mm
- Rapid Feedrate Speed: 6000 mm/min
- Auto. Feeding Speed: 0.001 ~ 2000 mm/min
- Min. Feeding Setting: 0.001 mm

Z-axis Travel
- Max. Travel: 560 mm
- Rapid Feedrate Speed: 6000 mm/min
- Auto. Feeding Speed: 0.001 ~ 2000 mm/min
- Min. Feeding Setting: 0.001 mm

Drive Motors
- Grinding Wheel Spindle: 3.75 kW (5.5 kW)
- Workhead Spindle Motor (servo motor): 0.85 kW (AC servo motor)
- Wheelhead Feed X-axis (servo motor): 1.0 kW (AC servo motor)
- Table Feed Z-axis (servo motor): 1.5 kW (AC servo motor)
- Wheel Spindle Lubrication Oil Pump: 0.18 kW
- Lubrication Oil Pump: 0.075 kW
- Coolant Pump: 0.18 kW

Tank Capacities
- Wheel Spindle Lubrication Oil Tank: 14 L
- Lubrication Oil Tank: 15 L

Machine
- Size (L x W x H): 2200 x 1860 x 2140 mm
- Net Weight: 2600 kg
- Center Height (from floor to center tip): 1057 mm

* The mentioned specifications & dimensions are subject to change without notice.


▶ ACCESSORIES

STANDARD ACCESSORIES

• CNC Controller (Brand: Mitsubishi) x 1 set
• Grinding Wheel and Flange x 1 set
• Carbide Tipped Work Centers (2 pcs/set) x 1 set
• Diamond Tool Holder (slider mounted type) x 1 set
• Linear Scale for X-axis x 1 set
• Grinding Wheel Inverter x 1 set
• Electric System x 1 set
• Fully Enclosed Splash Guard x 1 set
• Lubrication System x 1 set
• Coolant System x 1 set
• Work Lamp x 1 set
• Tools (Leveling pad) and Tool Box x 1 set

OPTIONAL ACCESSORIES

• Internal Grinding Attachment (incl. one spindle and G.W. inverter)
• Hydraulic Tailstock
• Cam-locked Driving Dogs
• Work Holder 2 pcs/set
• 2-point Steady Rest
• Adjustable 3-point Steady Rest
• Adjustable 3-jaw Scroll Chuck
• Adjustable 4-jaw Scroll Chuck
• Wheel Balancing Stand and Arbor
• Auto. Grinding Wheel Balancer
• Spare Grinding Wheel and Flange
• Roller Dresser Device
• Touch Probe Gauge
• Auto. In-Process Gauge
• Gap Control
• Magnetic Coolant Separator
• Paper Filter
• Oil Mist Collector
