Cylindrical grinding machine T series

workpiecehorizontalNC

INTRODUCTION

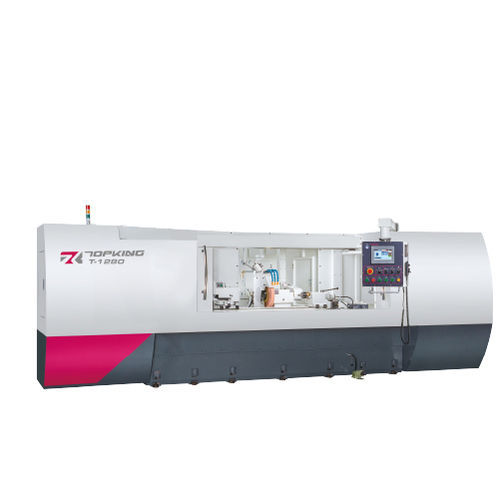

Designed for long shafts and heavy components up to 2000 mm between centers, the T-1280 and T-1680 are center-type cylindrical grinding machines that prioritize support and stability. Swing over table is Ø320 mm (T-1280) or Ø420 mm (T-1680). Maximum load held between centers: 100 kg (T-1280) and 150 kg (T-1680). An intuitive touchscreen GUI enables setup of grinding and dressing cycles without G-code programming. Reinforced bed rigidity and an integrated hydrostatic lubrication system reduce vibration during long-axis machining, enabling micron-level precision over long distances.

▎CAPACITY — T-1280 | T-1680
Swivel Over Table: Ø320 | Ø420 mm
Distance Between Centers: 2000 mm
Max. Grinding Diameter: Ø300 | Ø400 mm
Grinding Wheel Size: Ø405 x 50 x Ø127 mm


▶ MACHINE FEATURE

HIGH PERFORMANCE GRAPHICAL USER INTERFACE
▪ Intuitive touchscreen GUI for numerical programming, automatic execution of grinding and dressing cycles
▪ Coordinate memorization and multiple grinding/dressing strategies.

RIGID MACHINE BASE
▪ Heavier structural design with reinforced sliding seat mechanism and 1V+1 flat slideway structure for improved rigidity and stability.

HYDROSTATIC LUBRICATION SYSTEM
▪ Automatic hydrostatic lubrication on table and wheelhead slideways to enhance feed smoothness and machining accuracy.

WHEELHEAD CONSTRUCTION
▪ G.W. spindle manufactured from alloy steel SNCM-220 with multiple heat treatments and precision grinding
▪ Surface hardness above HRC62° for long-term accuracy.

WORKHEAD AND TAILSTOCK
▪ Precision bearings
▪ Servo-driven continuous-variable workhead
▪ Fixed-type work spindle and oil-bath lubricated tailstock with oil gauge.

DIAMOND TOOL HOLDER
▪ Tailstock-mounted diamond tool holder
▪ Diverse dressing devices available to suit component requirements.


▶ SPECIFICATION — T-1280 | T-1680

Capacity
- Swing Over Table: Ø320 mm | Ø420 mm
- Distance Between Centers: 2000 mm
- Max. Grinding Diameter: Ø300 mm | Ø400 mm
- Max. Grinding Length: 2000 mm
- Max. Load Held Between Centers: 100 kg | 150 kg
- Center Height (table to center tip): 160 mm | 210 mm

Grinding Wheel
- Size (O.D. x width x I.D.): Ø405 x 50 x Ø127 mm
- Linear Velocity: 33 m/sec

Worktable
- Swiveling Angle:| -1° ~ +7°

Workhead
- Swiveling Angle: -30° ~ +90°
- Center Taper: MT. No. 4
- Spindle Speed: 10 ~ 300 rpm
- Max. Load of Spindle (incl. tool holder): 35 kg (max. length: 150 mm)

Tailstock
- Center Taper: MT. No. 4
- Center Moving: Manual
- Tailstock Stroke: 25 mm

X-axis Travel
- Max. Travel: 250 mm
- Rapid Feedrate Speed: 6000 mm/min
- Auto Feeding Speed: 0.001 ~ 2000 mm/min
- Min. Feeding Setting: 0.001 mm

Z-axis Travel
- Max. Travel: 2540 mm
- Rapid Feedrate Speed: 6000 mm/min
- Auto Feeding Speed: 0.001 ~ 2000 mm/min
- Min. Feeding Setting: 0.001 mm

Drive Motors
- Grinding Wheel Spindle: 3.75 kW (5.5 kW)
- Workhead Spindle Motor (servo motor): 1.8 kW (AC servo motor)
- Wheelhead X-axis Motor (servo motor): 1.5 kW (AC servo motor)
- Table Z-axis Motor (servo motor): 3.5 kW (AC servo motor)
- Lubrication Oil Pump: 0.37 kW
- Wheel Spindle Lubrication Pump: 0.18 kW
- Coolant Pump: 0.18 kW

Tank Capacities
- Wheel Spindle Lubrication Oil Tank: 18 L
- Lubrication Oil Tank: 22 L

Machine
- Dimension (L x W x H): 7285 x 2923 x 2082 mm
- Net Weight: 6000 kg | 6200 kg
- Center Height (floor to center tip): 1095 mm | 1145 mm

* Specifications and dimensions are subject to change without notice.


▶ ACCESSORIES

STANDARD ACCESSORIES

• Grinding wheel and flange x 1 set
• Carbide-tipped work centers (2 pcs/set) x 1 set
• Diamond tool holder (tailstock-mounted) x 1 set
• Electrical system x 1 set
• Lubrication system x 1 set
• Coolant system x 1 set
• Work lamp x 1 set
• Tools (leveling pad) and toolbox x 1 set

OPTIONAL ACCESSORIES

• Internal grinding attachment (incl. one spindle and G.W. inverter)
• Hydraulic tailstock
• Cam-locked type driving dog
• Work holders (2 pcs/set)
• 2-point steady rest
• 3-point steady rest
• 3-jaw chuck
• 4-jaw chuck
• Spare grinding wheel and flange
• Diamond roller dressing device (flange connection to workhead)
• Wheel balancing stand & arbor
• Automatic grinding wheel balancer
• Touch probe gauge
• Automatic in-process gauge
• Semi-splash guard
• Fully enclosed splash guard
• Magnetic coolant separator
• Paper filter
• Oil mist collector
