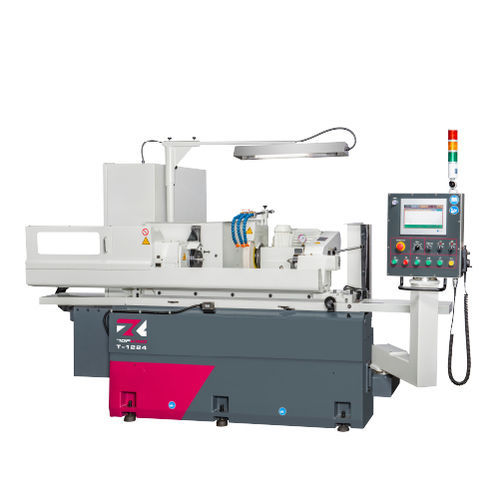

Cylindrical grinding machine T series

workpiecehorizontalNC

INTRODUCTION
TOPKING T series cylindrical grinder for step (multi-diameter) grinding. X and Z axes driven by NC servo motors with ball screws to simplify programming compared with traditional CNC systems. High-performance control with graphical user interface provides an intuitive operating environment for operators.

▎CAPACITY — T-1224 | T-1624
Swivel Over Table: Ø320 mm | Ø420 mm
Distance Between Centers: 600 mm
Max. Grinding Diameter: Ø300 mm | Ø400 mm
Grinding Wheel Size: Ø405 x 50 x Ø127 mm


▶ MACHINE FEATURE

HIGH PERFORMANCE GRAPHICAL USER INTERFACE
▪ Graphical dialogue operation interface for simplified, safe programming and operation.
▪ Numeric programming settings can automatically execute grinding cycles, dressing cycles and compensations.
▪ Single-key memory for mechanical origin, grinding, dressing and compensation coordinates.
▪ Multiple grinding and dressing methods selectable to match workpiece requirements.

RIGID MACHINE BASE
▪ Reinforced machine structure with thicker slideway and 1V-1 flat guideway design; lubrication system designed on static-pressure principle for improved precision and stability.

HYDROSTATIC LUBRICATION SYSTEM
▪ Advanced automatic hydrostatic lubrication for table and wheelhead slideways to improve lubrication performance, feed smoothness and feed-rate precision.

WHEELHEAD CONSTRUCTION
▪ The grinding wheel spindle is manufactured from high-grade SNCM-220 alloy steel with normalization, quenching, tempering, carburizing and cryogenic treatments, followed by precision grinding and mirror finish; surface hardness above HRC62 for durability and accuracy.

WORKHEAD AND TAILSTOCK
▪ Work spindle uses precision bearings for stability.
▪ Workhead driven by servo motor with continuous variable speed.
▪ Fixed-type work spindle for improved accuracy and stability.
▪ Tailstock with oil-bath lubrication and oil level indicator to maintain consistent precision.

DIAMOND TOOL HOLDER
▪ Tailstock-mounted diamond tool holder; multiple dressing devices available to suit component requirements.


▶ SPECIFICATION — T-1224 | T-1624

Capacity
- Swing Over Table: Ø320 mm | Ø420 mm
- Distance Between Centers: 600 mm
- Max. Grinding Diameter: Ø300 mm | Ø400 mm
- Max. Grinding Length: 600 mm
- Max. Load Held Between Centers: 100 kg | 150 kg
- Center Height (table to center tip): 160 mm | 210 mm

Grinding Wheel
- Size (O.D. x Width x I.D.): Ø405 x 50 x Ø127 mm
- Linear Velocity: 33 m/sec

Worktable
- Swiveling Angle: -2° ~ +10°

Workhead
- Swiveling Angle: -30° ~ +90°
- Center Taper: MT No. 4
- Spindle Speed: 10 ~ 300 rpm
- Max. Load of Spindle (tool holder included): 35 kg (max. length:150 mm)

Tailstock
- Center Taper: MT No. 4
- Center Moving: Manual Type
- Tailstock Stroke: 25 mm

X-axis Travel
- Max. Travel: 250 mm
- Rapid Feedrate Speed: 6000 mm/min
- Auto. Feeding Speed: 0.001 ~ 2000 mm/min
- Min. Feeding Setting: 0.001 mm

Z-axis Travel
- Max. Travel: 830 mm
- Rapid Feedrate Speed: 6000 mm/min
- Auto. Feeding Speed: 0.001 ~ 2000 mm/min
- Min. Feeding Setting: 0.001 mm

Drive Motors
- Grinding Wheel Spindle: 3.75 kW (5.5 kW)
- Workhead Spindle Motor (servo motor): 0.85 kW (AC servo motor) | 1.3 kW (AC servo motor)
- Wheelhead Feed X-axis (servo motor): 1.5 kW (AC servo motor)
- Table Feed Z-axis (servo motor): 1.5 kW (AC servo motor)
- Lubrication Oil Pump: 0.075 kW
- Wheel Spindle Lubrication Oil Pump: 0.18 kW
- Coolant Pump: 0.18 kW

Tank Capacities
- Wheel Spindle Lubrication Oil Tank: 18 L
- Lubrication Oil Tank: 15 L

Machine
- Dimension (L x W x H): 3490 x 1869 x 2200 mm
- Net Weight: 2600 kg | 2800 kg
- Center Height (floor to center tip): 1095 mm | 1145 mm

* The mentioned specifications & dimensions are subject to change without notice.


▶ ACCESSORIES

STANDARD ACCESSORIES

• Grinding wheel and flange x 1 set
• Carbide tipped work centers (2 pcs/set) x 1 set
• Diamond tool holder (tailstock mounted) x 1 set
• Electric system x 1 set
• Lubrication system x 1 set
• Coolant system x 1 set
• Work lamp x 1 set
• Tools (leveling pad) and toolbox x 1 set

OPTIONAL ACCESSORIES

• Internal grinding attachment (incl. spindle and G.W. inverter)
• Hydraulic tailstock
• Cam-locked type driving dog
• Work holders 2 pcs/set
• 2-point steady rest
• 3-point steady rest
• 3-jaw chuck
• 4-jaw chuck
• Spare grinding wheel and flange
• Diamond roller dressing device (connect by flange)
• Wheel balancing stand & arbor
• Automatic grinding wheel balancer
• Touch probe gauge
• Auto in-process gauge
• Semi-splash guard
• Fully enclosed splash guard
• Magnetic coolant separator
• Paper filter
• Oil mist collector
