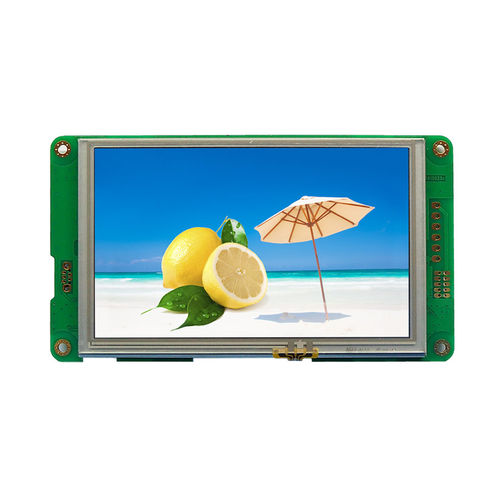

TFT LCD display module HMT050AMC-C

touch screencolorgraphic

TOPWAY Smart LCDs embed a display engine and a versatile range of TFT display sizes and Touch-Panels to support a wide range of industrial and instrumentation application. The pre-loaded User Interface (UI) reduces the host system’s workload and provides a much faster interaction with the user. UI designs are implemented under usage of TOPWAY’s Graphic Editor allowing designs with zero coding. It dramatically simplifies and speeds up the whole product design process. - - • - Screen Size(Diagonal) : 5.0” • - Resolution:800x480 • - Display Mode :Transmissive/Normal White • - Voltage:6V~26V • - Viewing Direction : 6H • - Outline Dimension : 143.5 x 80.9 x 14.1(mm) • - Active Area :108.0 x 64.8 (mm) • - Command I/F: RS-485C • - Backlight:LED • - Prodect Downlosd:by PC or U-driver(with OTG cable) • - Operating Temperature -20 ~ +70°C • - Storage Temperature -30 ~ +80°C ★TOPWAY is a professional industrial LCD module manufacturer and solutions provider. For semi-custom or full-custom products, please contact us for further information and options.
