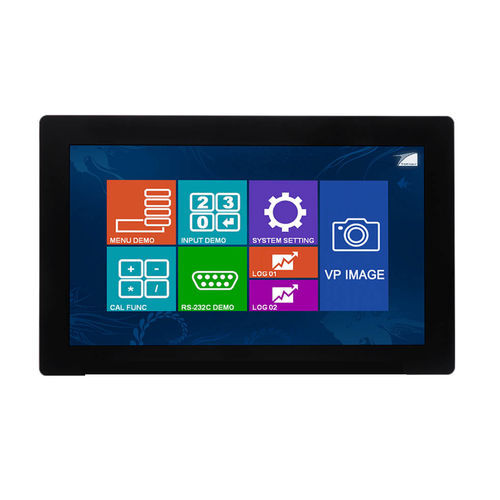

TFT LCD display module HMT101ATA-2D

capacitive touch screencolor1024 x 600

Product overview10.1-inch TFT intelligent LCD display module with 1024×600 resolution and RS232 interface. Designed for embedded displays and touch applications, the module features 800 cd/m² brightness, a capacitive touch panel (CTP) and supports the TOPWAY software protocol.Main specificationsResolution: 1024 × 600Interface: RS232Operating voltage: 12VOperating temperature: -20°C ~ 70°CBrightness: 800 cd/m²Size: 10.1 inchHousing dimensions: 260.0 x 163.0 x 22.6 mmActive area: 222.72 x 125.28 mmTouch panel: CTP (capacitive touch panel)Software protocol: TOPWAYWide viewing angle: NoDimensions / display sizeHousing dimensions: 260.0 x 163.0 x 22.6 mmDisplay size: 10.1"Active area: 222.72 x 125.28 mmApplicationsSuitable for embedded terminals, industrial control systems, human-machine interfaces (HMI), consumer display devices and other applications requiring a 10.1-inch touch display.Features summary / Technical specificationsPanel type: TFT color LCDResolution: 1024×600Brightness: 800 cd/m²Interface type: RS232 serialOperating voltage: 12VOperating temperature range: -20°C ~ 70°CHousing dimensions: 260.0 x 163.0 x 22.6 mmActive area: 222.72 x 125.28 mmTouch type: CTP (capacitive)Software protocol: TOPWAYWide viewing angle: No
