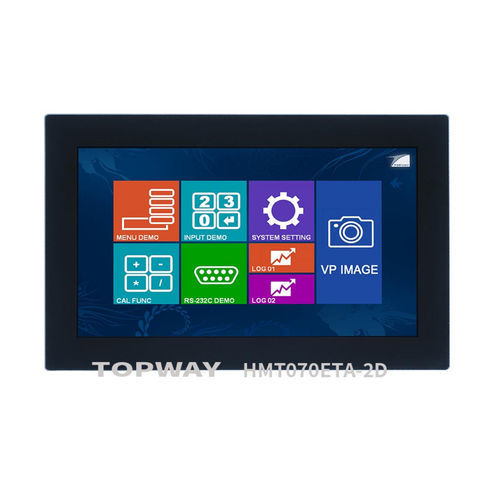

TFT LCD display module HMT070ETA-2Dcolor1024 x 6007"
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD
- Type
- color
- Format
- 1024 x 600
- Screen size
- 7"
- Applications
- industrial
- Interface
- RS-232
- Other characteristics
- wide-viewing angle, with built-in electronics, with controller, smart
- Width
183 mm
(7.2047 in)- Height
116 mm
(4.5669 in)- Depth
22.4 mm
(0.88 in)- Operating temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
Overview
Electrical & Environmental
Mechanical
Display / Touch
Additional information
Specifications
- 7-inch Smart TFT LCD display with capacitive touch (CTP)
- Model: HMT070ETA-2D
- Resolution: 1024 x 600
- Interface: RS232
- Brightness: 400 cd/m²
- Protocol/Software: TOPWAY
Electrical & Environmental
- Operating voltage: 11V ~ 26V
- Operating temperature: -20°C ~ 70°C
Mechanical
- Outline (W x H x D): 183.0 x 116.0 x 22.4 mm
- Active area (A.A.): 154.21 x 85.92 mm
- Size (diagonal): 7.0"
Display / Touch
- Wide viewing angle: Yes
- Touch screen type: CTP (capacitive touch panel)
Additional information
- Typical application: embedded and industrial systems requiring serial control via RS232
- Integrated display and touch controller; compatible with TOPWAY protocol
Specifications
- Model: HMT070ETA-2D
- Commercial name: 7-inch Smart TFT LCD Display
- Resolution: 1024 x 600
- Interface: RS232
- Voltage: 11V ~ 26V
- Operating temperature: -20°C ~ 70°C
- Wide viewing angle: Yes
- Outline dimensions: 183.0 x 116.0 x 22.4 mm
- Active area: 154.21 x 85.92 mm
- Size: 7.0"
- Touch screen: CTP (capacitive)
- Protocol/Software: TOPWAY
- Brightness: 400 cd/m²
