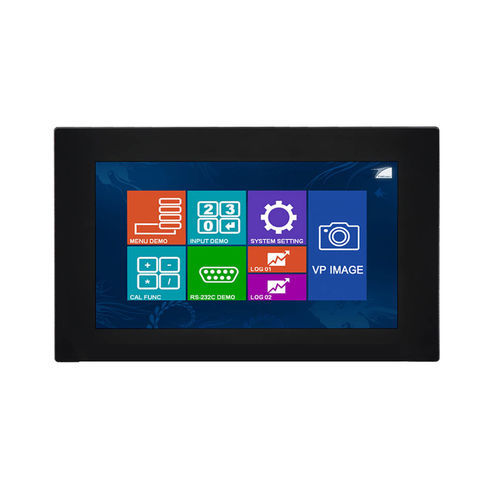

LCD display module HMT070ETA-3Dcapacitive touch screencolor1024 x 600
Add to favorites
Compare this product
Characteristics
- Screen type
- LCD, capacitive touch screen
- Type
- color
- Format
- 1024 x 600
- Screen size
- 7"
- Applications
- industrial
- Interface
- RS-232
- Other characteristics
- wide-viewing angle, smart
- Width
196 mm
(7.7165 in)- Height
121 mm
(4.7638 in)- Depth
23.6 mm
(0.93 in)- Operating temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
Product informationModel: HMT070ETA-3DSize: 7.0 inchResolution: 1024 x 600Interface: RS232Touchscreen: CTP (capacitive)Main specificationsOperating voltage: 12VOperating temperature: -20°C ~ 70°CLuminance: 750 cd/m²Wide viewing angle: YesOverall dimensions: 196.0 x 121.0 x 23.6 mmActive area: 154.21 x 85.92 mmSoftware protocol: TOPWAYProduct description7-inch smart LCD display module with 1024 x 600 resolution, integrated capacitive touch (CTP) and RS232 communication. Supports wide temperature range for industrial applications.Technical specificationsModel: HMT070ETA-3DPanel size: 7.0 inchResolution: 1024 x 600Interface type: RS232Touch type: CTP (capacitive)Operating voltage: 12VTemperature range: -20°C ~ 70°CLuminance: 750 cd/m²Wide viewing angle: YesDimensions (W x H x D): 196.0 x 121.0 x 23.6 mmActive area: 154.21 x 85.92 mmSoftware protocol: TOPWAY
