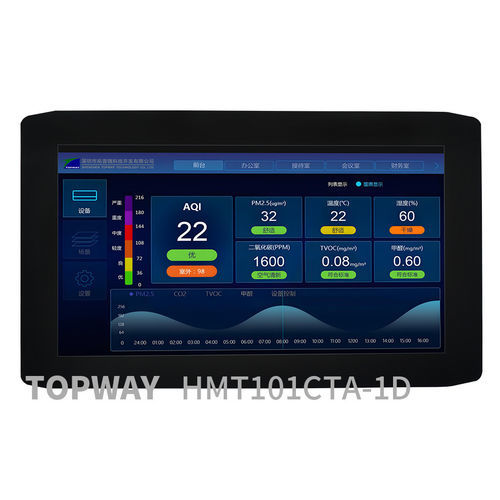

TFT LCD display module HMT101CTA-1Dcapacitive touch screenmultitouch screencolor
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, capacitive touch screen, multitouch screen
- Type
- color
- Format
- 1024 x 600
- Screen size
- 10.1"
- Applications
- industrial, control, instrumentation, for control panels
- Interface
- RS-232
- Structure
- bar shape
- Other characteristics
- wide-viewing angle, with controller, smart
- Length
265.64 mm
(10.458 in)- Width
166.64 mm
(6.5606 in)- Depth
20 mm
(0.79 in)- Operating temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
TOPWAY Smart LCDs embed a display engine and a versatile range of TFT display module sizes and Touch-Panels to support a wide range of industrial and instrumentation application. The pre-loaded User Interface (UI) reduces the host system’s workload and provides a much faster interaction with the user. UI designs are implemented under usage of TOPWAY’s Graphic Editor allowing designs with zero coding. It dramatically simplifies and speeds up the whole product design process.
• - Voltage 11V~26V
• - Temperature -20 ~ +70°C
• -Storage Temperature -30 ~ +80°C
• - Outline 265.64x 166.64 x 20.00mm
• - Protocol Topway
• - Active Area 222.72 x 125.28mm
Catalogs
No catalogs are available for this product.
