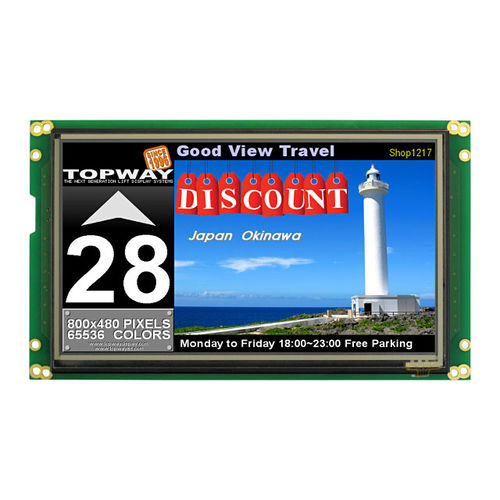

7" display module HMT070ETA-C
LCD/TFTLCD/ISTNresistive touch screen

7" display module
7" display module
Add to favorites
Compare this product


Characteristics

Type
LCD/TFT, LCD/ISTN, resistive touch screen, dot-matrix
Format
1024 x 600, high-resolution
Screen size
7"
Applications
industrial, instrumentation, control, for control panels, information, power, for medical equipment, remote control, for the energy sector, for transportation
Other characteristics
electronic, cost-effective, high-contrast, RS-232, high refresh rate, wide-viewing angle, smart, LED-backlit, built-in, indoor

Description

TOPWAY HMT070ETA-C is a Smart TFT Module with 32bit MCU on board. Its graphics engine provides numbers of out standing features. Itsupports TOPWAY TML 3.0 for preload and predesign display interface that simplify the host operation and development time. Suitable for industry control, instrumentation, medical electronics, power electrice quipment applications. • - Screen Size(Diagonal) :7 inch • - Resolution:1024x600 • - Interface:RS232 • - Display Mode :Transmissive/Normal Black • - Voltage:5V-26V • - Viewing Direction : Full view • - Outline Dimension : 185.9mm*109.5mm*19.3mm • - Active Area :154.21mm*85.92mm • - Backlight:LED • - Prodect Downlosd:by PC or U-driver(with OTG cable) • - Operating Temperature -20 ~ +70°C • - Storage Temperature -30 ~ +80°C • - Touch Screen:RTP • - Highlight:RTC without battery,Support 90 degrees rotation,Lua script engine,Buzzer

VIDEO

Catalogs

No catalogs are available for this product.

See all of TOPWAY LCD‘s catalogs

Exhibitions

Meet this supplier at the following exhibition(s):

embeddedworld

9-11 Apr 2024 Nuremberg (Germany) Hall 3A - Stand 240

  • More information

    Other TOPWAY LCD products

    Smart TFT display module
