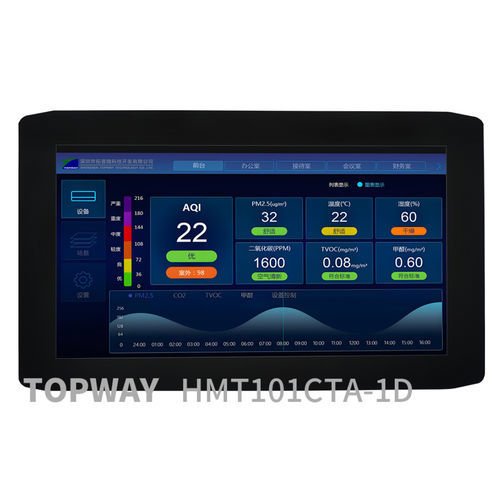

TFT LCD display module HMT101CTA-1Dcapacitive touch screencolor1024 x 600
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, capacitive touch screen
- Type
- color
- Format
- 1024 x 600
- Screen size
- 10.1"
- Applications
- industrial
- Interface
- RS-232
- Other characteristics
- wide-viewing angle, smart
- Operating temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
The 10.1-inch Smart TFT LCD HMT101CTA-1D offers a 1024×600 resolution with RS232 serial interface and TOPWAY protocol. Designed for industrial and embedded display applications, it integrates a capacitive touch panel (CTP) and supports wide viewing angles and extended operating temperatures.
Key information
Additional description
Specifications / Technical data
Key information
- Resolution: 1024×600
- Interface: RS232
- Supply voltage: 11V ~ 26V
- Operating temperature: -20°C ~ 70°C
- Wide viewing angle: Yes
- Outline (W x H x D): 265.64 x 166.64 x 20.00 mm
- Size: 10.1"
- Protocol: TOPWAY
- Active area (A.A.): 222.72 x 125.28 mm
- Touch screen: CTP
Additional description
- Brightness: 450 cd/m²
Specifications / Technical data
- Model: HMT101CTA-1D
- Display type: Smart TFT LCD
- Diagonal size: 10.1 inch
- Resolution: 1024 x 600 pixels
- Interface: RS232 serial
- Protocol: TOPWAY
- Supply voltage range: 11V to 26V
- Operating temperature range: -20°C to 70°C
- Viewing angle: Wide viewing angle
- Outline dimensions: 265.64 x 166.64 x 20.00 mm
- Active area: 222.72 x 125.28 mm
- Touch panel type: Capacitive touch panel (CTP)
- Luminance: 450 cd/m²
