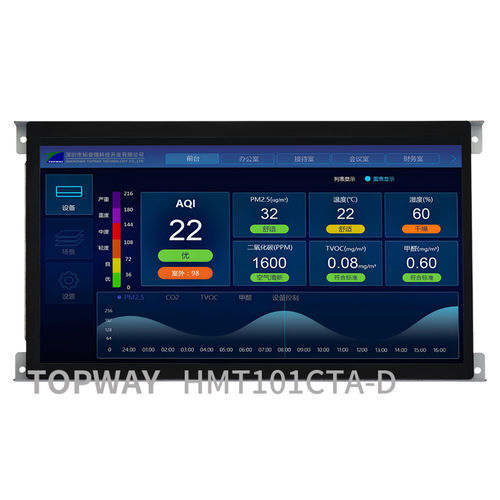

LCD display module HMT101CTA-D
capacitive touch screencolor1024 x 600

LCD display module - HMT101CTA-D - TOPWAY LCD - capacitive touch screen / color / 1024 x 600
LCD display module - HMT101CTA-D - TOPWAY LCD - capacitive touch screen / color / 1024 x 600
Add to favorites
Compare this product
Go to the TOPWAY LCD website for more information

Characteristics

Screen type
LCD, capacitive touch screen
Type
color
Format
1024 x 600
Screen size
10.1"
Applications
industrial, control
Interface
RS-232
Other characteristics
wide-viewing angle, smart
Operating temperature

Max.: 70 °C
(158 °F)

Min.: -20 °C
(-4 °F)

Description

This 10.1-inch smart LCD module is designed for embedded and industrial display applications. It integrates an optional capacitive touchscreen and supports RS232 control, enabling simple serial communication for human-machine interfaces and embedded systems. The module is specified for extended temperature operation, suitable for industrial environments.

Technical specifications
  • Resolution: 1024 x 600
  • Interface: RS232
  • Supply voltage: 11–26 V
  • Operating temperature: -20 °C to 70 °C
  • Wide viewing angle: Yes
  • Outline (W × H × D): 251.00 × 145.00 × 20.35 mm
  • Size: 10.1 inch
  • Protocol: TOPWAY
  • Active area (A.A.): 222.72 × 125.28 mm
  • Touch screen: CTP (capacitive touch panel)
  • Brightness: 450 cd/m²
