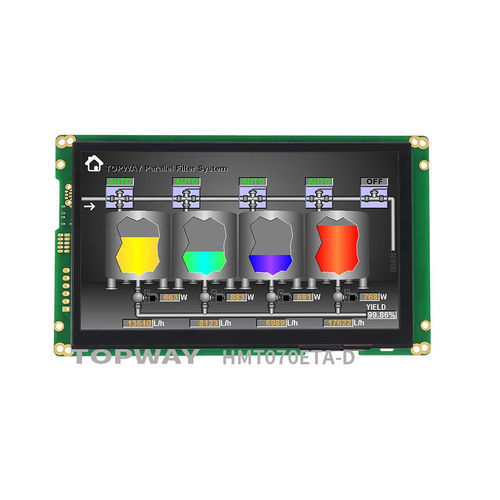

Capacitive touch screen display module HMT070ETA-Dcolor1024 x 6007"
Add to favorites
Compare this product
Characteristics
- Screen type
- capacitive touch screen
- Type
- color
- Format
- 1024 x 600
- Screen size
- 7"
- Interface
- RS-232
- Other characteristics
- wide-viewing angle
- Width
185.9 mm
(7.3189 in)- Height
109.5 mm
(4.311 in)- Depth
18.8 mm
(0.74 in)- Operating temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
Product name7.0-inch LCD display module HMT070ETA-D RS232 CTP 1024x600Key informationModel: HMT070ETA-DResolution: 1024 x 600Interface: RS232Operating voltage: 11V ~ 26VOperating temperature: -20°C ~ 70°CWide viewing angle: YesOverall dimensions: 185.9 x 109.5 x 18.8 mmDisplay size: 7.0-inchSoftware/protocol: TOPWAYActive display area (A.A.): 154.21 x 85.92 mmTouchscreen: CTPProduct detailsBrightness: 350 cd/m²Features / Specifications (technical parameters)Display size: 7.0-inchResolution: 1024 x 600Interface type: RS232Touch type: CTP (capacitive touch panel)Operating voltage range: 11V–26VOperating temperature range: -20°C to 70°CWide viewing angle support: YesActive display area: 154.21 x 85.92 mmOuter dimensions (W x H x D): 185.9 x 109.5 x 18.8 mmBrightness: 350 cd/m²Software/protocol: TOPWAY
Catalogs
No catalogs are available for this product.
See all of TOPWAY LCD‘s catalogsOther TOPWAY LCD products
Smart TFT display module
