TFT LCD display module HMT040ATA-Dcapacitive touch screenmultitouch screendot-matrix
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, capacitive touch screen, multitouch screen
- Type
- dot-matrix
- Format
- 480 x 480
- Screen size
- 4"
- Applications
- control, industrial, instrumentation, for medical equipment, for control panels, for the energy sector, information, for transportation, power, safety, for gas meters, digital signage
- Interface
- RS-232
- Configuration/mounting
- indoor, built-in
- Other characteristics
- cost-effective, wide-viewing angle, high-contrast, high refresh rate, backlit, programmable
- Width
84 mm
(3.3071 in)- Height
86 mm
(3.3858 in)- Thickness
11.4 mm
(0.449 in)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)
Description

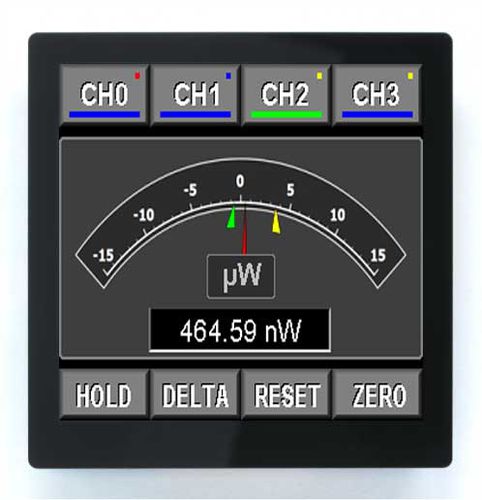

TOPWAYHMT040ATAD is a Smart TFT Module with 16bit MCU on board. Its graphics engine provides numbers of out standing features. Itsupports TOPWAY TML3.0(Editor2017) for preload and predesign display interface that simplify the host operation and development time. Suitable for industry control, instrumentation, medical electronics, power electrice quipment applications.
• - Screen Size(Diagonal) :4.0”
• - Resolution:480x480
• - Interface:RS232
• - Display Mode :Transmissive/Normal Black
• - Voltage:5V
• - Viewing Direction : Full view
• - Outline Dimension : 84mm*86mm*11.4mm
• - Active Area :71.856mm * 70.176mm
• - Backlight:LED
• - Prodect Downlosd:by PC or U-driver(with OTG cable)
• - Operating Temperature -20 ~ +70°C
• - Storage Temperature -30 ~ +80°C
