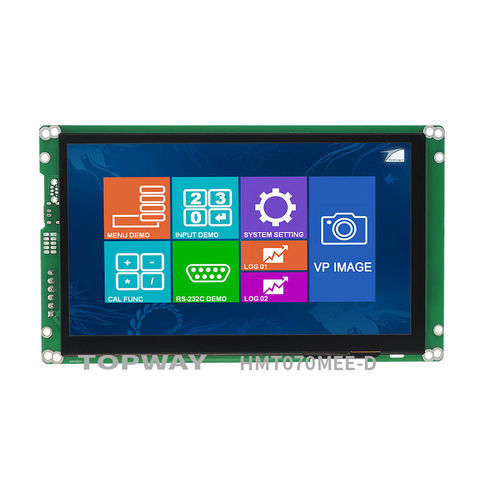

LCD display module HMT070MEE-Dcapacitive touch screencolor1024 x 600
Add to favorites
Compare this product
Characteristics
- Screen type
- LCD, capacitive touch screen
- Type
- color
- Format
- 1024 x 600
- Screen size
- 7"
- Interface
- CANbus
- Other characteristics
- wide-viewing angle, smart
- Width
185.9 mm
(7.3189 in)- Height
109.5 mm
(4.311 in)- Depth
30.1 mm
(1.19 in)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)
Description
Product overview
Key information
Technical specifications
- 7.0-inch smart LCD display module, resolution 1024 x 600, interface: CAN, touch type: CTP (capacitive touch).
- Brightness: 350 cd/m².
Key information
- Model: HMT070MEE-D
- Resolution: 1024 x 600
- Interface: CAN
- Operating voltage: 11 V ~ 26 V
- Operating temperature: -20°C ~ 70°C
- Wide viewing angle: Yes
- Module dimensions: 185.9 x 109.5 x 30.1 mm
- Display size: 7.0 inch
- Software protocol: TOPWAY
- Active area (A.A.): 154.21 x 85.92 mm
- Touchscreen: CTP
Technical specifications
- Module type: Smart LCD module
- Display size: 7.0 inch
- Resolution: 1024 x 600 pixels
- Active area: 154.21 x 85.92 mm
- Module dimensions: 185.9 x 109.5 x 30.1 mm
- Touch type: Capacitive touch (CTP)
- Interface: CAN
- Operating voltage range: 11 V to 26 V
- Operating temperature range: -20 °C to 70 °C
- Brightness: 350 cd/m²
- Wide viewing angle: Yes
- Software protocol: TOPWAY
