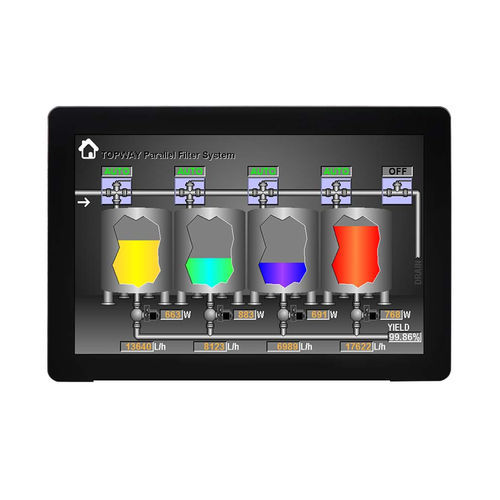

TFT LCD display module HMT121BTA-Dprojected capacitive touchscreencolor1280 x 800
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, projected capacitive touchscreen
- Type
- color
- Format
- 1280 x 800
- Screen size
- 12.1"
- Interface
- RS-232
- Other characteristics
- wide-viewing angle, smart
- Width
301.52 mm
(11.8709 in)- Height
205.6 mm
(8.0945 in)- Depth
27.5 mm
(1.08 in)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)
Description
Product name12.1-inch TFT smart LCD display module HMT121BTA-D CTP RS232 1280x800Product informationModel: HMT121BTA-DResolution: 1280x800Interface: RS232Operating voltage: 12VOperating temperature: -20°C ~ 70°CWide viewing angle: YesOverall dimensions: 301.52 x 205.60 x 27.50 mmSize: 12.1 inchesSoftware protocol: TOPWAYActive area (A.A.): 261.12 x 163.20 mmTouchscreen: CTPDetailed descriptionBrightness: 350 cd/m²Features / SpecificationsDisplay size: 12.1 inchesPanel type: TFT colorResolution: 1280 x 800 pixelsTouch type: CTP (projected capacitive touchscreen)Main interface: RS232 serialOperating voltage: 12VOperating temperature range: -20°C to 70°CWide viewing angle panel: supportedOverall dimensions (L x W x H): 301.52 x 205.60 x 27.50 mmActive display area: 261.12 x 163.20 mmBrightness: 350 cd/m²Software protocol: TOPWAY
Catalogs
No catalogs are available for this product.
See all of TOPWAY LCD‘s catalogsOther TOPWAY LCD products
Smart TFT display module
