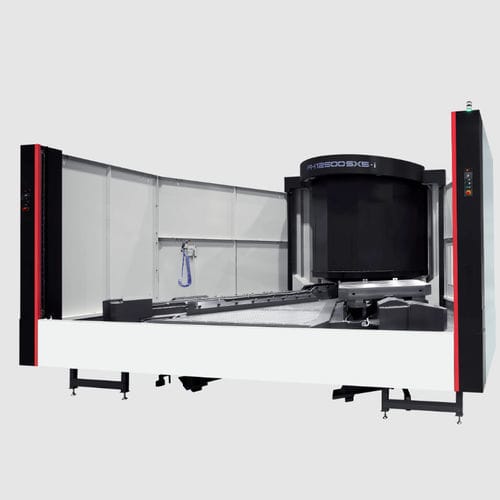

3-axis CNC machining center FH12500SX-ihorizontal60 tools120 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- horizontal
- Number of tool stations
- 60 tools, 120 tools
- Other characteristics
- high-performance, direct-drive, high-rigidity, high-precision, high-speed
- X travel
2,400 mm
(94 in)- Y travel
1,600 mm, 1,800 mm
(63 in, 71 in)- Z travel
1,850 mm
(73 in)- Rotational speed
5,000 rpm, 8,000 rpm
(31,416 rad.min-1, 50,265 rad.min-1)- Work feed X-axis
42,000 mm/min
(28 in/s)- Work feed Y-axis
42,000 mm/min
(28 in/s)- Work feed Z-axis
42,000 mm/min
(28 in/s)- Weight
48,000 kg
(105,821.89 lb)- Overall length
3,600 mm
(141.7 in)- Overall width
6,900 mm
(271.7 in)
Description
The FH12500SX-i is a powerful, high-speed horizontal machining center featuring an upgraded heavy duty 6,000 RPM gear driven spindle with 1,620 ft.lbs of torque. The FH12500 series platform has available spindle options for 8,000 RPM or 15,000 RPM. The 12500SX-i utilizes a cylindrical roller guide design for increased speed as well as dual ballscrew drive on the Y and Z axes for increased rigidity. The FH12500 series is the perfect option to reduce cycle times of large components with the rapid feedrate of 1,654 ipm and a 3.7 second chip to chip tool change time.
