3-axis CNC machining center FH12500SW-i
horizontal60 tools120 tools

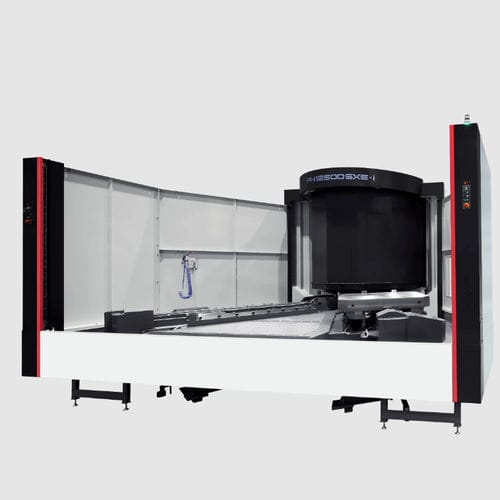

3-axis CNC machining center - FH12500SW-i - Toyoda Machine Works - horizontal / 60 tools / 120 tools
3-axis CNC machining center - FH12500SW-i - Toyoda Machine Works - horizontal / 60 tools / 120 tools
3-axis CNC machining center - FH12500SW-i - Toyoda Machine Works - horizontal / 60 tools / 120 tools - image - 2
3-axis CNC machining center - FH12500SW-i - Toyoda Machine Works - horizontal / 60 tools / 120 tools - image - 3
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis
Spindle orientation
horizontal
Number of tool stations
60 tools, 120 tools
Applications
heavy-duty
Other characteristics
high-performance, high-rigidity, high-precision, high-speed
X travel

2,400 mm
(94.49 in)

Y travel

1,800 mm
(70.87 in)

Z travel

1,850 mm
(72.83 in)

Rotational speed

4,000 rpm
(25,133 rad.min-1)

Work feed X-axis

42,000 mm/min
(27.56 in/s)

Work feed Y-axis

42,000 mm/min
(27.56 in/s)

Work feed Z-axis

42,000 mm/min
(27.56 in/s)

Table load capacity

5,000 kg
(11,023 lb)

Weight

48,000 kg
(105,821.89 lb)

Overall length

3,600 mm
(141.7 in)

Overall width

6,900 mm
(271.7 in)

Description

The FH12500SW-i is a powerful, high-speed horizontal machining center featuring a 4,000RPM heavy duty 4,000 RPM gear driven quill spindle with 1,620 ft.lbs of torque. The FH12500 series platform has available spindle options for 8,000 RPM or 15,000 RPM. The 12500SW-i utilizes a cylindrical roller guide design for increased speed as well as dual ballscrew drive on the Y and Z axes for increased rigidity. The FH12500 series is the perfect option to reduce cycle times of large components with the rapid feedrate of 1,654 ipm.
