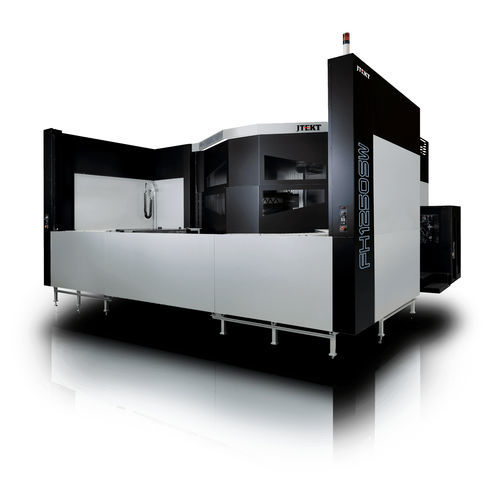

3/4-axis CNC machining center FH1250SWhorizontalCAT5060 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3/4-axis
- Spindle orientation
- horizontal
- Spindle mount
- CAT50
- Number of tool stations
- 60 tools
- Associated functions
- drilling
- Applications
- heavy-duty
- Other characteristics
- high-speed, high-performance, high-rigidity, high-precision
- X travel
2,000 mm
(78.74 in)- Y travel
1,500 mm
(59.06 in)- Z travel
1,850 mm
(72.83 in)- Rotational speed
3,000 rpm
(18,850 rad.min-1)- Power
60 ch
(60 hp)- Workpiece max height
1,800 mm
(71 in)- Work feed X-axis
32,000 mm/min
(21 in/s)- Work feed Y-axis
32,000 mm/min
(21 in/s)- Work feed Z-axis
32,000 mm/min
(21 in/s)- Table load capacity
5,000 kg
(11,023 lb)- Weight
49,500 kg
(109,128.82 lb)- Overall length
7,450 mm
(293.3 in)- Overall width
9,900 mm
(389.8 in)- Overall height
4,520 mm
(178 in)
Description
The FH1250SW is a quill-spindle horizontal machining center designed for heavy-duty operations. This machine’s unique 3,000 RPM spindle is ideal for boring and deep drilling, allowing workpieces previously requiring two operations to be completed on a single machine.
