3-axis CNC machining center CMH 500XL
horizontalcolumn typeCAT40

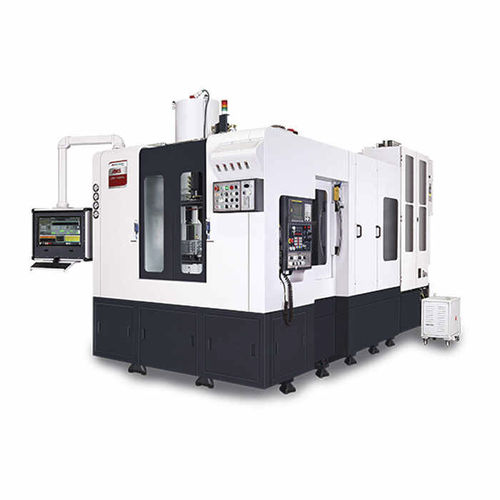

3-axis CNC machining center - CMH 500XL - Toyoda Machine Works - horizontal / column type / CAT40
3-axis CNC machining center - CMH 500XL - Toyoda Machine Works - horizontal / column type / CAT40
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis
Spindle orientation
horizontal
Structure
column type
Spindle mount
CAT40
Number of tool stations
40 tools
Other characteristics
high-speed, high-performance, high-rigidity, high-precision
X travel

800 mm
(31.5 in)

Y travel

550 mm
(21.65 in)

Z travel

550 mm
(21.65 in)

Rotational speed

8,000 rpm
(50,265 rad.min-1)

Power

20 ch
(20 hp)

Work feed X-axis

40,000 mm/min
(26.25 in/s)

Work feed Y-axis

40,000 mm/min
(26.25 in/s)

Work feed Z-axis

40,000 mm/min
(26.25 in/s)

Table load capacity

500 kg
(1,102 lb)

Description

The column moving type machine series is a new generation of horizontal machining centers. The CMH500XL comes with a CT 40, 20 HP, 8,000 RPM spindle and a 40 automatic tool changer as a standard feature. This machine is designed to be able to machine long difficult-to-handle applications.
