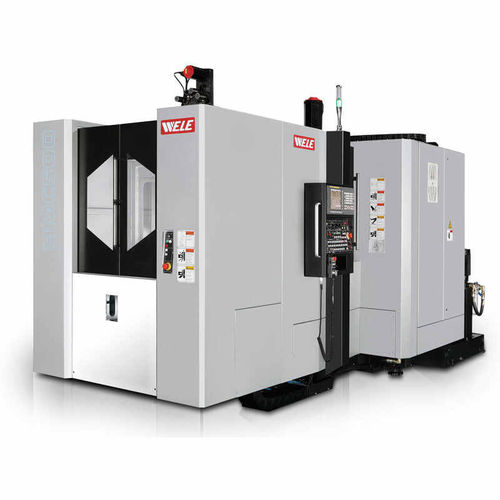

3-axis CNC machining center HMC500horizontalfor steelCAT40
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- horizontal
- Machined material
- for steel
- Spindle mount
- CAT40
- Number of tool stations
- 60 tools
- Other characteristics
- high-speed, high-performance, high-productivity, high-rigidity, high-precision
- X travel
650 mm
(25.59 in)- Y travel
610 mm
(24.02 in)- Z travel
680 mm
(26.77 in)- Rotational speed
15,000 rpm
(94,248 rad.min-1)- Power
30 ch
(30 hp)- Workpiece max height
900 mm
(35 in)- Work feed X-axis
60,000 mm/min
(39.37 in/s)- Work feed Y-axis
60,000 mm/min
(39.37 in/s)- Work feed Z-axis
60,000 mm/min
(39.37 in/s)- Table load capacity
500 kg
(1,102 lb)- Weight
11,500 kg
(25,353.16 lb)- Overall length
2,650 mm
(104.3 in)- Overall width
4,603 mm
(181.2 in)- Overall height
2,936 mm
(115.6 in)
Description
A step up from a 400 mm size machine, the Wele HMC500 offers larger work envelope and superior production value for high-speed operations. The HMC500 features a 30 HP, 15,000 RPM built-in motor style, with 3.3 seconds ramp up 0 to 15,000 high-speed spindle makes the most of your production.
VIDEO
