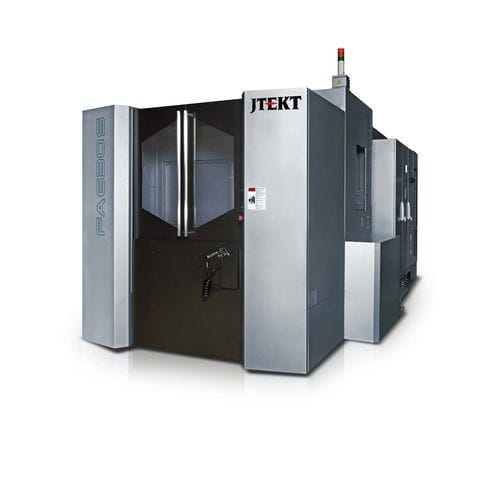

3-axis CNC machining center FA630S
horizontalcolumn typewith rotary table

3-axis CNC machining center - FA630S - Toyoda Machine Works - horizontal / column type / with rotary table
3-axis CNC machining center - FA630S - Toyoda Machine Works - horizontal / column type / with rotary table
3-axis CNC machining center - FA630S - Toyoda Machine Works - horizontal / column type / with rotary table - image - 2
3-axis CNC machining center - FA630S - Toyoda Machine Works - horizontal / column type / with rotary table - image - 3
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis
Spindle orientation
horizontal
Structure
column type, with rotary table
Spindle mount
CAT50
Number of tool stations
60 tools
Applications
heavy-duty
Other characteristics
high-speed, high-performance, high-rigidity, high-precision, high-power
X travel

1,000 mm
(39.37 in)

Y travel

850 mm
(33.46 in)

Z travel

750 mm
(29.53 in)

Rotational speed

15,000 rpm
(94,248 rad.min-1)

Power

50 ch
(50 hp)

Workpiece max height

1,000 mm
(39 in)

Work feed X-axis

36,000 mm/min
(23.62 in/s)

Work feed Y-axis

36,000 mm/min
(23.62 in/s)

Work feed Z-axis

36,000 mm/min
(23.62 in/s)

Table load capacity

1,300 kg
(2,866 lb)

Weight

16,000 kg
(35,273.96 lb)

Overall length

3,550 mm
(139.8 in)

Overall width

6,050 mm
(238.2 in)

Overall height

3,561 mm
(140.2 in)

Description

The FA630S is a heavy-duty horizontal machining center featuring a robust column and bed, box guideways, and a powerful spindle. These features allow for powerful machining with high accuracy.
