3-axis CNC machining center FH1000SX
horizontalCAT5060 tools

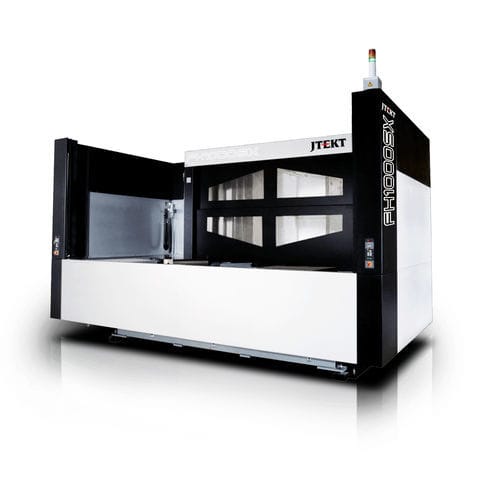

3-axis CNC machining center - FH1000SX - Toyoda Machine Works - horizontal / CAT50 / 60 tools
3-axis CNC machining center - FH1000SX - Toyoda Machine Works - horizontal / CAT50 / 60 tools
3-axis CNC machining center - FH1000SX - Toyoda Machine Works - horizontal / CAT50 / 60 tools - image - 2
3-axis CNC machining center - FH1000SX - Toyoda Machine Works - horizontal / CAT50 / 60 tools - image - 3
3-axis CNC machining center - FH1000SX - Toyoda Machine Works - horizontal / CAT50 / 60 tools - image - 4
3-axis CNC machining center - FH1000SX - Toyoda Machine Works - horizontal / CAT50 / 60 tools - image - 5
3-axis CNC machining center - FH1000SX - Toyoda Machine Works - horizontal / CAT50 / 60 tools - image - 6
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis
Spindle orientation
horizontal
Spindle mount
CAT50
Number of tool stations
60 tools
Other characteristics
high-speed, high-performance, high-rigidity, high-precision, high-power
X travel

1,600 mm
(62.99 in)

Y travel

1,400 mm
(55.12 in)

Z travel

1,800 mm
(70.87 in)

Rotational speed

15,000 rpm
(94,248 rad.min-1)

Power

50 ch
(50 hp)

Workpiece max height

1,600 mm
(63 in)

Table load capacity

3,000 kg
(6,614 lb)

Weight

31,000 kg
(68,343.3 lb)

Overall length

5,900 mm
(232.3 in)

Overall width

9,350 mm
(368.1 in)

Overall height

4,051 mm
(159.5 in)

Description

The FH1000SX is a powerful, high-speed horizontal machining center featuring a 6,000 RPM spindle, with options of an 8,000 RPM or 15,000 RPM high-torque spindle, and a rapid feedrate of 2,126 ipm (54 m/min). This machine has dual ballscrew drive on the Y and Z axes, and a Meehanite cast iron base to suppress vibration in the heaviest of cuts.
