3-axis CNC machining center FA1050S
horizontalCAT5060 tools

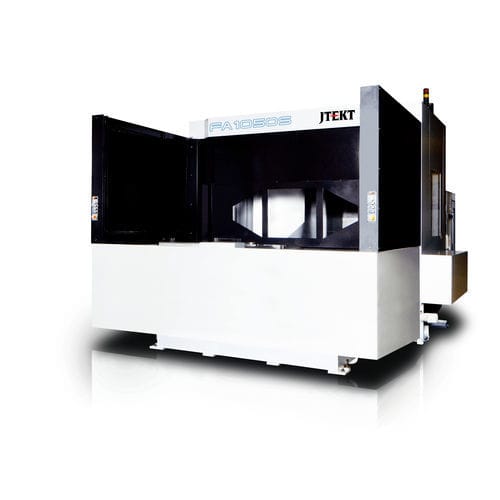

3-axis CNC machining center - FA1050S - Toyoda Machine Works - horizontal / CAT50 / 60 tools
3-axis CNC machining center - FA1050S - Toyoda Machine Works - horizontal / CAT50 / 60 tools
3-axis CNC machining center - FA1050S - Toyoda Machine Works - horizontal / CAT50 / 60 tools - image - 2
3-axis CNC machining center - FA1050S - Toyoda Machine Works - horizontal / CAT50 / 60 tools - image - 3
3-axis CNC machining center - FA1050S - Toyoda Machine Works - horizontal / CAT50 / 60 tools - image - 4
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis
Spindle orientation
horizontal
Spindle mount
CAT50
Number of tool stations
60 tools
Applications
heavy-duty
Other characteristics
high-speed, high-performance, direct-drive, high-rigidity, high-precision
X travel

1,600 mm
(62.99 in)

Y travel

1,400 mm
(55.12 in)

Z travel

1,850 mm
(72.83 in)

Rotational speed

6,000 rpm, 15,000 rpm
(37,699 rad.min-1, 94,248 rad.min-1)

Power

50 ch, 60 ch
(50 hp, 60 hp)

Workpiece max height

1,550 mm
(61 in)

Work feed X-axis

24,000 mm/min
(15.75 in/s)

Work feed Y-axis

24,000 mm/min
(15.75 in/s)

Work feed Z-axis

24,000 mm/min
(15.75 in/s)

Table load capacity

3,000 kg
(6,614 lb)

Weight

30,000 kg
(66,138.68 lb)

Overall length

5,460 mm
(215 in)

Overall width

8,140 mm
(320.5 in)

Overall height

4,100 mm
(161.4 in)

Description

The FA1050S is a heavy-duty horizontal machining center featuring a 6,000 RPM direct-drive spindle, with options of a 6,000 RPM geared-head spindle or 15,000 RPM spindle, and a rapid feedrate of 944 ipm (24 m/min). The machine’s box guideways, robust column and bed, and large workpiece swing allow for powerful machining with high accuracy.
