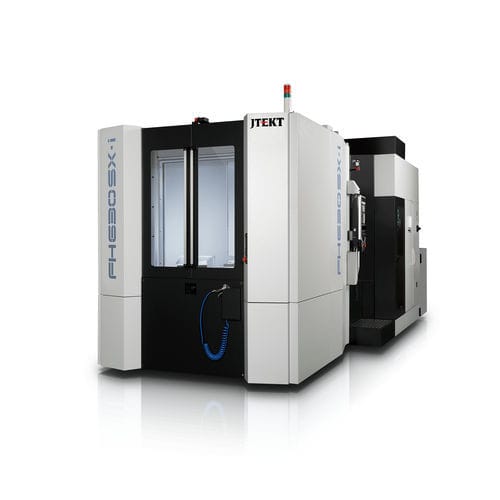

3-axis CNC machining center FH630SX-ihorizontalwith rotary tablefor aluminum
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- horizontal
- Structure
- with rotary table
- Machined material
- for aluminum, for steel
- Spindle mount
- CAT50
- Number of tool stations
- 60 tools
- Other characteristics
- high-speed, high-performance, high-rigidity, high-precision, high-power
- X travel
1,050 mm
(41 in)- Y travel
900 mm
(35 in)- Z travel
1,050 mm
(41 in)- Rotational speed
8,000 rpm, 15,000 rpm
(50,265 rad.min-1, 94,248 rad.min-1)- Power
50 ch, 74 ch
(50 hp, 74 hp)- Workpiece max height
1,250 mm
(49 in)- Work feed X-axis
60,000 mm/min
(39 in/s)- Work feed Y-axis
60,000 mm/min
(39 in/s)- Work feed Z-axis
60,000 mm/min
(39 in/s)- Table load capacity
1,500 kg
(3,307 lb)- Weight
19,600 kg
(43,210.6 lb)- Overall length
3,600 mm
(141.7 in)- Overall width
6,900 mm
(271.7 in)- Overall height
3,203 mm
(126.1 in)
Description
The FH630SX-i is a powerful, high-speed horizontal machining center featuring an 8,000 RPM spindle, with the option of a 15,000 RPM high-torque spindle, and a rapid feedrate of 2,362 ipm (60 m/min). This machine has dual ballscrew drive on the Y and Z axes, and a Meehanite cast iron base for improved rigidity.
VIDEO
