3-axis CNC machining center FH500J
horizontalwith rotary tableCAT50

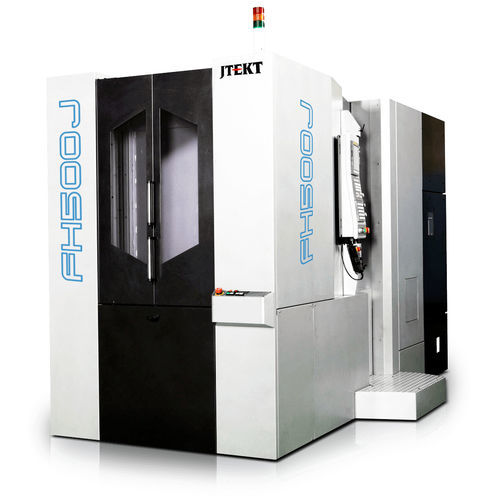

3-axis CNC machining center - FH500J - Toyoda Machine Works - horizontal / with rotary table / CAT50
3-axis CNC machining center - FH500J - Toyoda Machine Works - horizontal / with rotary table / CAT50
3-axis CNC machining center - FH500J - Toyoda Machine Works - horizontal / with rotary table / CAT50 - image - 2
3-axis CNC machining center - FH500J - Toyoda Machine Works - horizontal / with rotary table / CAT50 - image - 3
3-axis CNC machining center - FH500J - Toyoda Machine Works - horizontal / with rotary table / CAT50 - image - 4
3-axis CNC machining center - FH500J - Toyoda Machine Works - horizontal / with rotary table / CAT50 - image - 5
3-axis CNC machining center - FH500J - Toyoda Machine Works - horizontal / with rotary table / CAT50 - image - 6
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis
Spindle orientation
horizontal
Structure
with rotary table
Spindle mount
CAT50
Number of tool stations
60 tools
Other characteristics
high-speed, high-performance, compact, direct-drive, high-rigidity, high-precision
X travel

730 mm
(28.74 in)

Y travel

730 mm
(28.74 in)

Z travel

850 mm
(33.46 in)

Rotational speed

15,000 rpm
(94,248 rad.min-1)

Power

50 ch
(50 hp)

Workpiece max height

1,000 mm
(39 in)

Work feed X-axis

60,000 mm/min
(39.37 in/s)

Work feed Y-axis

60,000 mm/min
(39.37 in/s)

Work feed Z-axis

60,000 mm/min
(39.37 in/s)

Table load capacity

700 kg
(1,543 lb)

Weight

13,500 kg
(29,762.41 lb)

Overall length

2,330 mm
(91.7 in)

Overall width

4,630 mm
(182.3 in)

Overall height

2,870 mm
(113 in)

Description

The FH500J and FH500J-50 are compact, high-speed horizontal machining centers featuring a 15,000 RPM spindle, tool-to-tool cycle time of .9 seconds, and a rapid feedrate of 2,362 ipm (60 m/min). All FH500J models (#40 & #50) taper are equipped with a Direct Drive B Axis Table, featuring an index time (90 degrees) of 0.5 seconds and 360,000 degree positioning.
