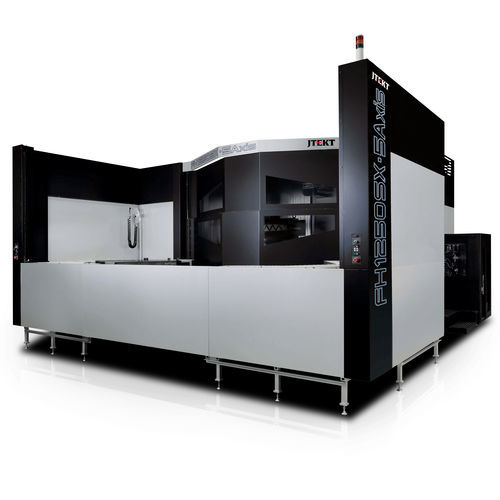

5-axis CNC machining center FH1250SXhorizontalfor steelfor aluminum
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- horizontal
- Machined material
- for steel, for aluminum
- Structure
- with rotary table
- Spindle mount
- CAT50
- Number of tool stations
- 60 tools
- Applications
- for large workpieces
- Other characteristics
- high-speed, high-performance, high-rigidity, high-precision
- X travel
2,200 mm
(86.61 in)- Y travel
1,600 mm
(62.99 in)- Z travel
1,850 mm
(72.83 in)- Rotational speed
15,000 rpm
(94,248 rad.min-1)- Power
50 ch
(50 hp)- Workpiece max height
1,800 mm
(71 in)- Work feed X-axis
32,000 mm/min
(21 in/s)- Work feed Y-axis
32,000 mm/min
(21 in/s)- Work feed Z-axis
32,000 mm/min
(21 in/s)- Table load capacity
5,000 kg
(11,023 lb)- Weight
49,500 kg
(109,128.82 lb)- Overall length
6,320 mm
(248.8 in)- Overall width
10,000 mm
(393.7 in)- Overall height
4,520 mm
(178 in)
Description
The FH1250SX 5-axis is a five-axis horizontal machining center designed for complex, large part machining. It features a 15,000 RPM integral tilting spindle and rapid feed rates of 1,260 ipm (32 m/min) on the X and Y axes and 1,654 ipm (42 m/min) on the Z axis.
