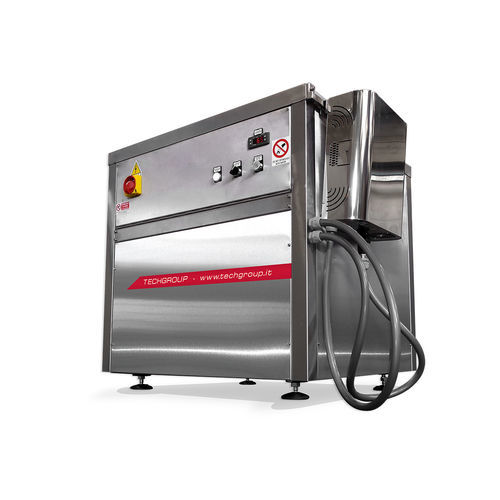

Stainless steel ultrasonic cleaner VU series

industrialfor parts cleaning

General description
The VU series washers are made entirely of AISI 304 double-walled stainless steel and are supplied complete with:

• detergent solution heating
• rock wool insulation
• removable manual lid
• ball drain valve
• ultrasonic unit with remote control
• adjustable support feet
• electric panel

Optional

• suction collar
• basket agitation
• soundproofing
• oil separator
• basket rotation
• lift
• fairing superior

Standard models and tank data
Useful tank dimensions lxpxh (mm) and Elect. power heating (kW):
VU 35 - 300 x 400 x 300 - 3
VU 60 - 400 x 500 x 300 - 3
VU 80 - 400 x 600 x 300 - 6
VU 100 - 400 x 600 x 400 - 6
VU 170 - 550 x 700 x 450 - 6
VU 240 - 600 x 800 x 500 - 9
VU 320 - 650 x 900 x 550 - 12
VU 420 - 700 x 1000 x 600 - 12
VU 550 - 750 x 1100 x 650 - 18
VU 670 - 800 x 1200 x 700 - 18
VU 770 - 850 x 1200 x 750 - 18


Technical features / specifications

• Construction material: AISI 304 stainless steel, double-walled
• Heating of detergent solution (electric heating)
• Rock wool thermal insulation
• Removable manual lid for access
• Ball drain valve for emptying
• Ultrasonic unit supplied with remote control
• Adjustable support feet for leveling
• Integrated electric control panel
• Available optional accessories: suction collar, basket agitation, soundproofing, oil separator, basket rotation, lift, superior fairing
• Multiple standard VU models with varying tank dimensions and heating power (see model list above)
