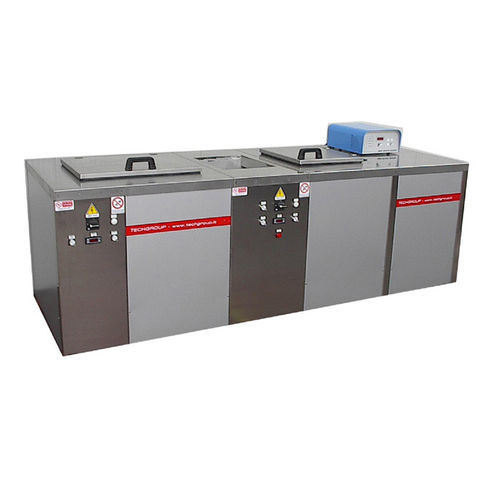

Stainless steel ultrasonic cleaner Compact series

for parts cleaning

Overview
The Compact series is manufactured in AISI 304 stainless steel with double-walled construction and a pre-painted sheet metal casing mounted on a single frame with adjustable feet. The washer includes a ball drain valve, a manually movable lid, ultrasonic transducers, electric heaters, a digital thermostat and thermal insulation. Rinse tanks are supplied with inlet ramps, an overflow hopper and a drain valve.

Heat treatment and oven
The heat treatment tank (Compact M 6 series) is supplied with a ball drain valve, a manually movable lid, electric heaters, a digital thermostat and insulation. The oven is equipped with a dual-threshold thermostat, an insulated manual lid, insulation and a push-pull air circulation system.

Diagrams and images

• Compact M4 diagram
• Compact M6 diagram
• Photographs: washing tank, buffer tank, manual lid, skimming ramp, insulated/insoundproofing

Technical data / Models

• Compact M 50/4 — Useful dim. b×c×h (mm): 300×450×250; External dim. (mm): 2000×700×1100; Electr. power (heating liquids) (kW): 3; Oven electrical power (kW): 3+3; Oven air flow (m3/h): 900
• Compact M 100/4 — Useful dim. b×c×h (mm): 400×550×350; External dim. (mm): 2450×800×1100; Electr. power (heating liquids) (kW): 6; Oven electrical power (kW): 6+3; Oven air flow (m3/h): 1600
• Compact M 50/6 — Useful dim. b×c×h (mm): 300×450×250; External dim. (mm): 2900×700×1100; Electr. power (heating liquids) (kW): 3+3; Oven electrical power (kW): 3+3; Oven air flow (m3/h): 900
• Compact M 100/6 — Useful dim. b×c×h (mm): 400×500×350; External dim. (mm): 3600×800×1100; Electr. power (heating liquids) (kW): 6+6; Oven electrical power (kW): 6+3; Oven air flow (m3/h): 1600

Customization
In addition to the standard models we can create ultrasonic systems upon specific request or requirements of the customer.
