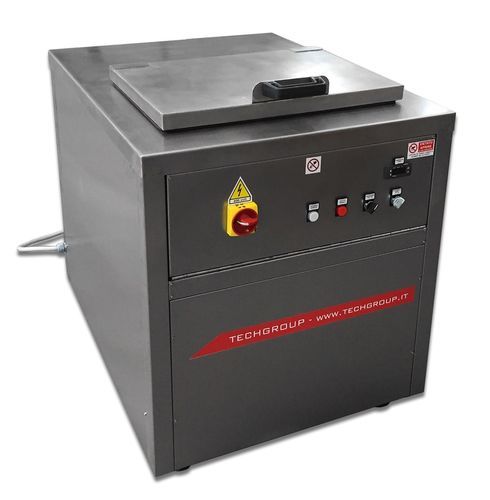

Cabinet oven FAM seriesdryingelectrichot air
Add to favorites
Compare this product
Characteristics
- Configuration
- cabinet
- Function
- drying
- Heat source
- electric, hot air
- Atmosphere
- air circulating, forced convection
- Other characteristics
- industrial, stainless steel, continuous
- Width
Min.: 45 cm
(17.72 in)Max.: 120 cm
(47.24 in)- Height
Min.: 25 cm
(9.84 in)Max.: 70 cm
(27.56 in)- Depth
Min.: 30 cm
(11.81 in)Max.: 80 cm
(31.5 in)
Description
Description
The FAM series drying ovens are designed for industrial drying of treated parts by continuous circulation of heated air. Constructed entirely from AISI 304 stainless steel for corrosion resistance and suitability in production environments, the ovens provide controlled drying cycles and accessible handling.
Features
Optional
Standard models — Useful tank dimensions (mm) — Electrical power, heating (kW)
FAM 35 | 300x450x250 | 3
FAM 60 | 350x500x300 | 3+3
FAM 80 | 400x550x350 | 3+3
FAM 120 | 500x600x400 | 6+3
FAM 170 | 550x700x450 | 6+3
FAM 240 | 600x800x500 | 6+3
FAM 320 | 650x900x550 | 6+3
FAM 420 | 700x1000x600 | 6+3
FAM 550 | 750x1100x650 | 6+6
FAM 670 | 800x1200x700 | 6+6
Technical specifications
The FAM series drying ovens are designed for industrial drying of treated parts by continuous circulation of heated air. Constructed entirely from AISI 304 stainless steel for corrosion resistance and suitability in production environments, the ovens provide controlled drying cycles and accessible handling.
Features
- Full insulation
- Partially adjustable heating coil
- Fan heater
- Thermostatic temperature control
- Condensate drain valve
- Insulated hinged cover
- Adjustable feet
- Electrical panel
Optional
- Basket rotation
- Automatic lid
- Refrigeration unit for air dehumidification
Standard models — Useful tank dimensions (mm) — Electrical power, heating (kW)
FAM 35 | 300x450x250 | 3
FAM 60 | 350x500x300 | 3+3
FAM 80 | 400x550x350 | 3+3
FAM 120 | 500x600x400 | 6+3
FAM 170 | 550x700x450 | 6+3
FAM 240 | 600x800x500 | 6+3
FAM 320 | 650x900x550 | 6+3
FAM 420 | 700x1000x600 | 6+3
FAM 550 | 750x1100x650 | 6+6
FAM 670 | 800x1200x700 | 6+6
Technical specifications
- Series: FAM series
- Body material: AISI 304 stainless steel
- Operation: Drying by continuous circulation of heated air
- Insulation: Full insulation
- Heating: Partially adjustable heating coil; fan heater
- Control: Thermostatic temperature control
- Drain: Condensate drain valve
- Cover: Insulated hinged cover (optional automatic lid)
- Mounting: Adjustable feet
- Electrical: Electrical panel included
- Optional systems: Basket rotation; refrigeration unit for air dehumidification
- Available standard models with tank dimensions and heating power as listed above
