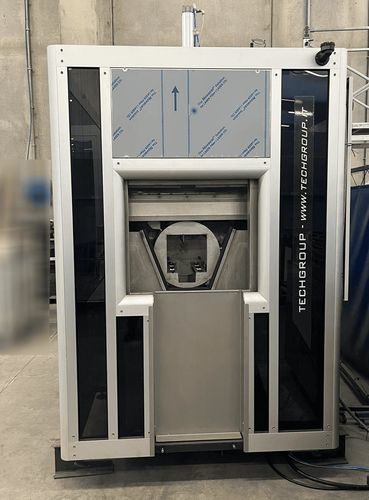

Rotary part washer CCR series

dryerspraying

Overview
The CCR series rotating-drum spray washer performs spray cleaning of mechanical parts to remove oily residues and other contaminants. The drum rotates on a horizontal axis driven by a gearmotor while side spray ramps deliver the cleaning solution to ensure complete degreasing. For steel parts treated with aqueous solutions, apply a suitable corrosion-protection product after washing.

Washing cycle and description of stages

• Inserting the basket into the rotating drum
• Washing by spraying with hot cleaning solution
• Drainage and dripping
• Blowing with compressed air (optional)
• Vapour extraction
• Drying with hot air knife (optional)
• Basket extraction

Notes
Compressed-air blowing is available only if the optional «Compressed air blowing» kit is installed. Hot-air knife drying is available only if the optional «Hot air drying» kit is installed.

Technical data / models

• CCR 30: Basket 300 x 460 x 200 mm; Useful load 100 kg; Pump power 2 kW; Pump flow 150 l/min; Washing pressure 5 bar; Wash tank capacity 375 l; Vapour intake 900 m3/h; Electric heating 12 kW; External dims L 1800 x P 1650 x H 2500 mm; Drum rotation horizontal; Spray wash; 1 hot tank; 2 ramps; Drum position sensor standard; Material AISI304; Casing Methacrylate/Al.
• CCR 120: Basket 400 x 700 x 400 mm; Useful load 150 kg; Pump power 4 kW; Pump flow 215 l/min; Washing pressure 4.5 bar; Wash tank capacity 550 l; Vapour intake 1125 m3/h; Electric heating 15 kW; External dims L 1900 x P 2350 x H 2600 mm; Drum rotation horizontal; Spray wash; 1 hot tank; 2 ramps; Drum position sensor standard; Material AISI304; Casing Methacrylate/Al.
• CCR 320: Basket 600 x 900 x 600 mm; Useful load 200 kg; Pump power 5.5 kW; Pump flow 300 l/min; Washing pressure 4.5 bar; Wash tank capacity 750 l; Vapour intake 1600 m3/h; Electric heating 24 kW; External dims L 2100 x P 2550 x H 2700 mm; Drum rotation horizontal; Spray wash; 1 hot tank; 2 ramps; Drum position sensor standard; Material AISI304; Casing Methacrylate/Al.
• CCR 640: Basket 800 x 1000 x 800 mm; Useful load 150 kg; Pump power 5.5 kW; Pump flow 300 l/min; Washing pressure 4.5 bar; Wash tank capacity 825 l; Vapour intake 2200 m3/h; Electric heating 24 kW; External dims L 2300 x P 2650 x H 2750 mm; Drum rotation horizontal; Spray wash; 1 hot tank; 2 ramps; Drum position sensor standard; Material AISI304; Casing Methacrylate/Al.

The CCR models
The CCR family is available in the -2 series with rinsing and drying options, and in the CCR-I series for hydrokinetic washing.

Characteristics / technical specifications

• CCR 30: Basket 300 x 460 x 200 mm; Useful load 100 kg; Pump 2 kW; Flow 150 l/min; Washing pressure 5 bar; Wash tank 375 l; Vapour intake 900 m3/h; Electric heating 12 kW; External dims L 1800 x P 1650 x H 2500 mm; Material AISI304; Casing Methacrylate/Al; Horizontal drum; Spray wash; 1 hot tank; 2 ramps; Drum position sensor standard.
• CCR 120: Basket 400 x 700 x 400 mm; Useful load 150 kg; Pump 4 kW; Flow 215 l/min; Washing pressure 4.5 bar; Wash tank 550 l; Vapour intake 1125 m3/h; Electric heating 15 kW; External dims L 1900 x P 2350 x H 2600 mm; Material AISI304; Casing Methacrylate/Al; Horizontal drum; Spray wash; 1 hot tank; 2 ramps; Drum position sensor standard.
• CCR 320: Basket 600 x 900 x 600 mm; Useful load 200 kg; Pump 5.5 kW; Flow 300 l/min; Washing pressure 4.5 bar; Wash tank 750 l; Vapour intake 1600 m3/h; Electric heating 24 kW; External dims L 2100 x P 2550 x H 2700 mm; Material AISI304; Casing Methacrylate/Al; Horizontal drum; Spray wash; 1 hot tank; 2 ramps; Drum position sensor standard.
• CCR 640: Basket 800 x 1000 x 800 mm; Useful load 150 kg; Pump 5.5 kW; Flow 300 l/min; Washing pressure 4.5 bar; Wash tank 825 l; Vapour intake 2200 m3/h; Electric heating 24 kW; External dims L 2300 x P 2650 x H 2750 mm; Material AISI304; Casing Methacrylate/Al; Horizontal drum; Spray wash; 1 hot tank; 2 ramps; Drum position sensor standard.
