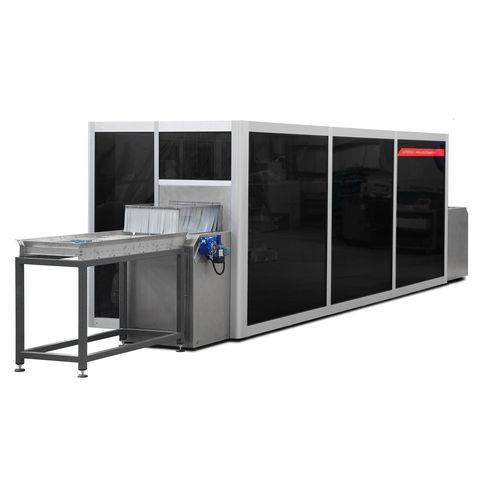

Spray washing tunnel

for parts cleaningautomaticwith belt conveyor

Industrial spray wash tunnel
Designed for continuous industrial cleaning, this wash tunnel is built in double-walled AISI 304 stainless steel. Upper and lower adjustable spray ramps with stainless steel nozzles ensure targeted spray action. All connecting pipes are removable and inspectable to simplify maintenance and service.

Washing tunnel composition

• Stainless steel conveyor belt
• Vertical stainless steel process pumps
• Removable, inspectable connecting pipes
• Collection tanks removable from the central treatment body
• Adjustable upper and lower spray ramps with stainless steel nozzles
• Inspection covers mounted on a labyrinth for steam tightness
• Oil separation: gravitational separator (disk-type) or coalescing plate
• PLC-based control and management

Technical characteristics / specifications

• Construction: double-walled AISI 304 stainless steel
• Washing section: two-tank arrangement (dirty and clean) with cascade recirculation
• Dirty tank filtration down to 300 microns; removal of oil and suspended contaminants
• Clean tank supplies low-contamination solution for direct spraying
• Conveyor belt in stainless steel integrated into the tunnel
• Vertical stainless steel process pumps
• Collection tanks bottom sloped toward drain valves for complete drainage
• Level control via vertical float switches
• Heating options: gas or electric heaters with dual regulation thresholds
• Inspection covers on labyrinth mounting to ensure steam tightness
• Oil separator options: gravitational disk-type or coalescing plate
• Control via PLC for process automation
