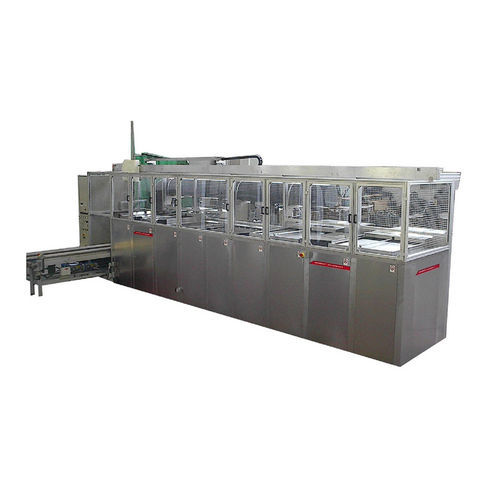

Ultrasonic cleaner with automated loading Compact A series

for continuous operationstainless steelindustrial

Overview
Our automatic ultrasonic cleaning systems are constructed entirely of double-walled Aisi 304 stainless steel. Ovens can be configured with push-pull or vacuum air circulation. Self-learning automatic conveyors are available in multiple capacities and integrate with the cleaning line for continuous processing.

Ultrasonic cleaner - features

• Ball drain valve
• Ultrasound
• Electric heaters
• Digital thermostat
• Suction collar
• Insulation

Rinse tanks - features

• Inlet ramps
• Overflow hopper
• Drain valve
• Adjustable support feet

Heat treatment tanks - features

• Ball drain valve
• Electric heaters
• Digital thermostat
• Suction collar
• Insulation

Models / Technical data

• Compact A 50/4 — Useful dim. bxcxh (mm): 300x450x250; External dimensions (mm): 3000x1600x2200; Electr. power heating liquids (kW): 3; Electr. power oven (kW): 3+3; Oven air flow (m3/h): 900
• Compact A 100/4 — Useful dim. bxcxh (mm): 400x550x350; External dimensions (mm): 3600x2000x2300; Electr. power heating liquids (kW): 6; Electr. power oven (kW): 6+3; Oven air flow (m3/h): 1600
• Compact A 150/4 — Useful dim. bxcxh (mm): 500x600x400; External dimensions (mm): 4000x2000x2300; Electr. power heating liquids (kW): 6; Electr. power oven (kW): 6+3; Oven air flow (m3/h): 2400
• Compact A 210/4 — Useful dim. bxcxh (mm): 550x700x450; External dimensions (mm): 4200x2200x2500; Electr. power heating liquids (kW): 12; Electr. power oven (kW): 6+3; Oven air flow (m3/h): 3000
• Compact A 50/6 — Useful dim. bxcxh (mm): 300x450x250; External dimensions (mm): 3900x1600x2200; Electr. power heating liquids (kW): 3+3; Electr. power oven (kW): 3+3; Oven air flow (m3/h): 900
• Compact A 100/6 — Useful dim. bxcxh (mm): 400x550x350; External dimensions (mm): 4700x2000x2300; Electr. power heating liquids (kW): 6+6; Electr. power oven (kW): 6+3; Oven air flow (m3/h): 1600
• Compact A 150/6 — Useful dim. bxcxh (mm): 500x600x400; External dimensions (mm): 5150x2000x2300; Electr. power heating liquids (kW): 6+6; Electr. power oven (kW): 6+3; Oven air flow (m3/h): 2400
• Compact A 210/6 — Useful dim. bxcxh (mm): 550x700x450; External dimensions (mm): 5350x2200x2500; Electr. power heating liquids (kW): 12+12; Electr. power oven (kW): 6+3; Oven air flow (m3/h): 3000

Technical specifications

• Construction: double-walled Aisi 304 stainless steel
• Ultrasonic cleaner equipment: ball drain valve, ultrasound, electric heaters, digital thermostat, suction collar, insulation
• Rinse tanks equipment: inlet ramps, overflow hopper, drain valve, adjustable support feet
• Heat treatment tanks equipment: ball drain valve, electric heaters, digital thermostat, suction collar, insulation
• Oven options: push-pull or vacuum air circulation
• Conveyors: self-learning automatic conveyors available with various capacities
• Available models (Compact A series): Compact A 50/4, 100/4, 150/4, 210/4, 50/6, 100/6, 150/6, 210/6 with dimensional and power specifications as listed above
