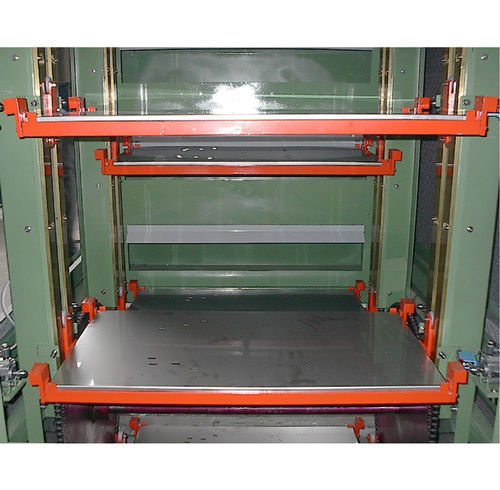

Vertical cooling tunnel Cooling plans

Product description
Our systems cool workpieces using forced ambient air inside a controlled cooling tunnel. Pallets convey components through the tunnel while low-speed centrifugal roof-mounted fans recirculate the air. The external casing is soundproof painted sheet metal with removable panels for maintenance.

Main features

• Cooling tables equipped with a thermo-ventilation unit
• Double-chain pallet translation system (horizontal and vertical chain systems)
• Pneumatic centering unit and centering pistons at load/unload positions
• Dedicated workpiece holders and pallet handling
• Low-speed centrifugal roof-mounted fans for air recirculation
• External soundproof painted sheet metal panels, removable for service
• Drive: self-braking motor with inverter control

Technical specifications

• Cooling method: forced ambient air
• Thermo-ventilation unit included
• Translation: double-chain system for pallet movement (horizontal and vertical)
• Centering: pneumatic unit and pistons at loading/unloading
• Workpiece handling: holders and pallet movement system
• Air recirculation: low-speed centrifugal roof-mounted fans
• External panels: soundproof, painted, removable sheet metal
• Drive: self-braking motor with inverter control
