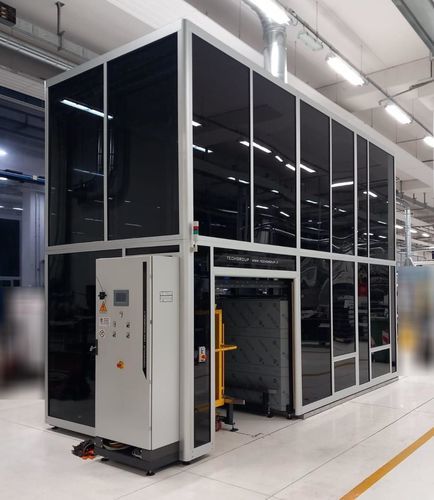

Industrial washing unit

for tanksultrasonic

Overview
Modular multi-tank washing systems composed of ultrasonic, rinse and hydrokinetic tanks, plus integrated ovens. All tanks and ovens are manufactured in double-walled AISI 304 stainless steel. Ultrasonic tanks are fitted with ball drain valves, an ultrasound system (transducers and generator), electric heaters, a digital thermostat, a suction collar and insulation. Rinse tanks include inlet ramps, an overflow hopper and a drain valve. Hydrokinetic tanks include a ball drain valve, a manually operated movable lid, connection for an external buffer tank and a hydrokinetic pump. Ovens are dual-position with dual-threshold thermostat control, an automatically insulated removable lid, insulation, push-pull air circulation, a recirculation fan and adjustable feet.

Features and components

• Construction material: double-walled AISI 304 stainless steel
• Ultrasonic tanks: ball drain valve, ultrasound setup (transducers/generator), electric heaters, digital thermostat, suction collar, insulation
• Rinse tanks: inlet ramps, overflow hopper, drain valve
• Hydrokinetic tanks: ball drain valve, manually operated movable lid, connection to external buffer tank, hydrokinetic pump
• Ovens: dual-position design, dual-threshold thermostat, automatically insulated removable lid, insulation, push-pull air circulation system, recirculation fan, adjustable feet

Technical specifications

• Material: AISI 304 stainless steel, double-walled
• Ultrasonic system: integrated ultrasound setup (transducers/generator), dedicated electric heaters, digital thermostat
• Drainage: ball drain valves on ultrasonic and hydrokinetic tanks
• Rinse system: inlet ramps and overflow hopper for controlled rinsing
• Hydrokinetic system: manually operated movable lid, hydrokinetic pump, connectivity for external buffer tank
• Oven heating control: dual-threshold thermostat
• Oven insulation: automatically insulated removable lid and insulation layers
• Air management in ovens: push-pull air circulation system with recirculation fan
• Adjustability: adjustable feet on ovens
