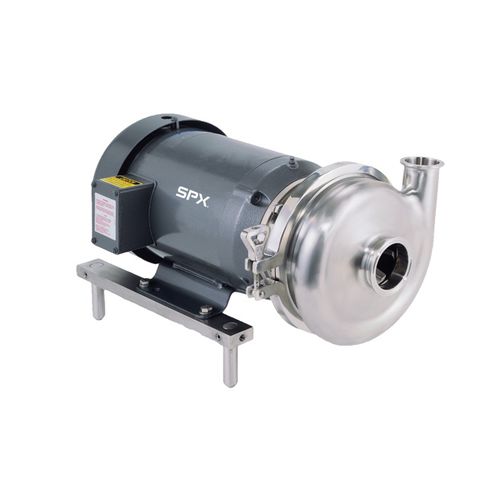

Food product pump Sanitary 200 series
electriccentrifugalstationary

food product pump
food product pump
Add to favorites
Compare this product


Characteristics

Fluid
for food products
Operation
electric
Technology
centrifugal
Mobility
stationary
Domain
for the pharmaceutical industry, for the cosmetics industry, sanitary
Applications
service
Material
stainless steel
Other characteristics
standard, high-efficiency, heavy-duty, seal
Flow

Min.: 22 m³/h
(776.92267 ft³/h)

Max.: 318 m³/h
(11,230.06402 ft³/h)

Head

Min.: 7 m
(22'11" )

Max.: 104 m
(341'02" )

Length

Min.: 445 mm
(18 in)

Max.: 831 mm
(33 in)

Width

Min.: 237 mm
(9.33 in)

Max.: 528 mm
(20.79 in)

Height

Min.: 89 mm
(3.5 in)

Max.: 178 mm
(7.01 in)

Description

We take particular pride in our 200 Series centrifugal pump Line, offering the pump user the benefits of traditional quality, value and service with higher levels of performance. FEATURES The Sanitary 200 Series pump is designed for heavy-duty, high-efficiency applications and provides exceptional corrosion resistance. The impeller and shaft are one piece, which connects directly to motor shaft, eliminating such problems as vibration, short bearing life, high NPSH requirements, high seal maintenance, poor alignment and adverse operating conditions. Benefits 316L stainless steel volute, backplate, impeller and shaft Five-bladed impeller with deeper eye for improved inlet characteristics Modular seal design - one size fits all models Wide range of seal options, including standard commercial seals Strong JM-type motor with large bearings and strong shaft Base mounting options available with all sizes The Waukesha Volute Casing (High Capacity Models are More Versatile) The optimized Waukesha design performs more efficiently over a wide range of operating conditions. The efficient casing and port design maximize performance under low NPSH conditions. Enlarged Ports Investment Cast, or machined from solid (not stamped & welded) Deeper, more efficient inlet “eye” Volute casing (high capacity models), evens flow, minimizes turbulence
